Xenon Timing Light TRISCO TL-122 for 12V Car Motorcycle Marine 2&4 Stroke Petrol Engine Xenon Lamp Inductive Strobe Timing Tool

Save $10.00
OBDHELPER storeSKU: TL-122
No reviews
Price:
$59.99 USD $69.99 USD

Shipping calculated at checkout

Stock:
In stock (100 units), ready to be shipped

Description

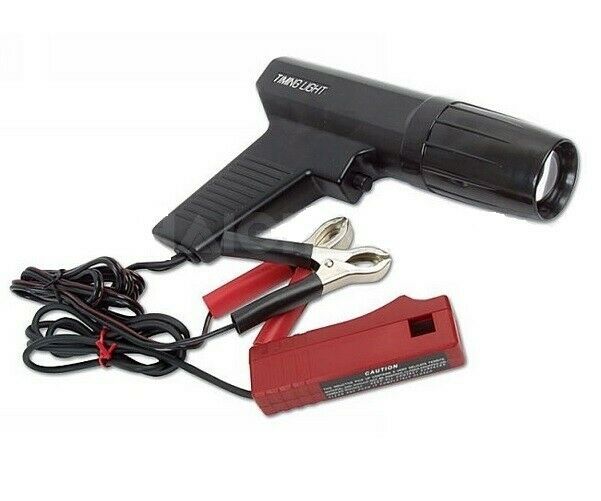

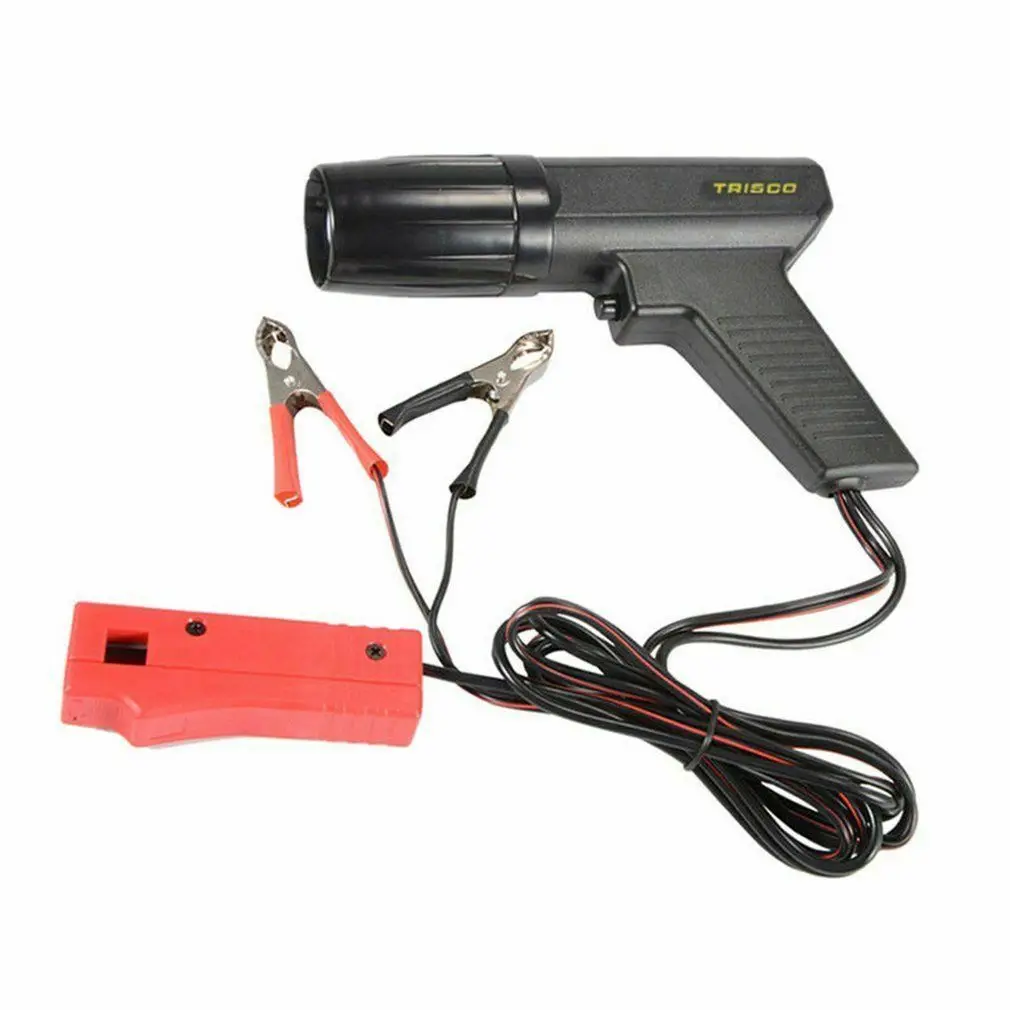

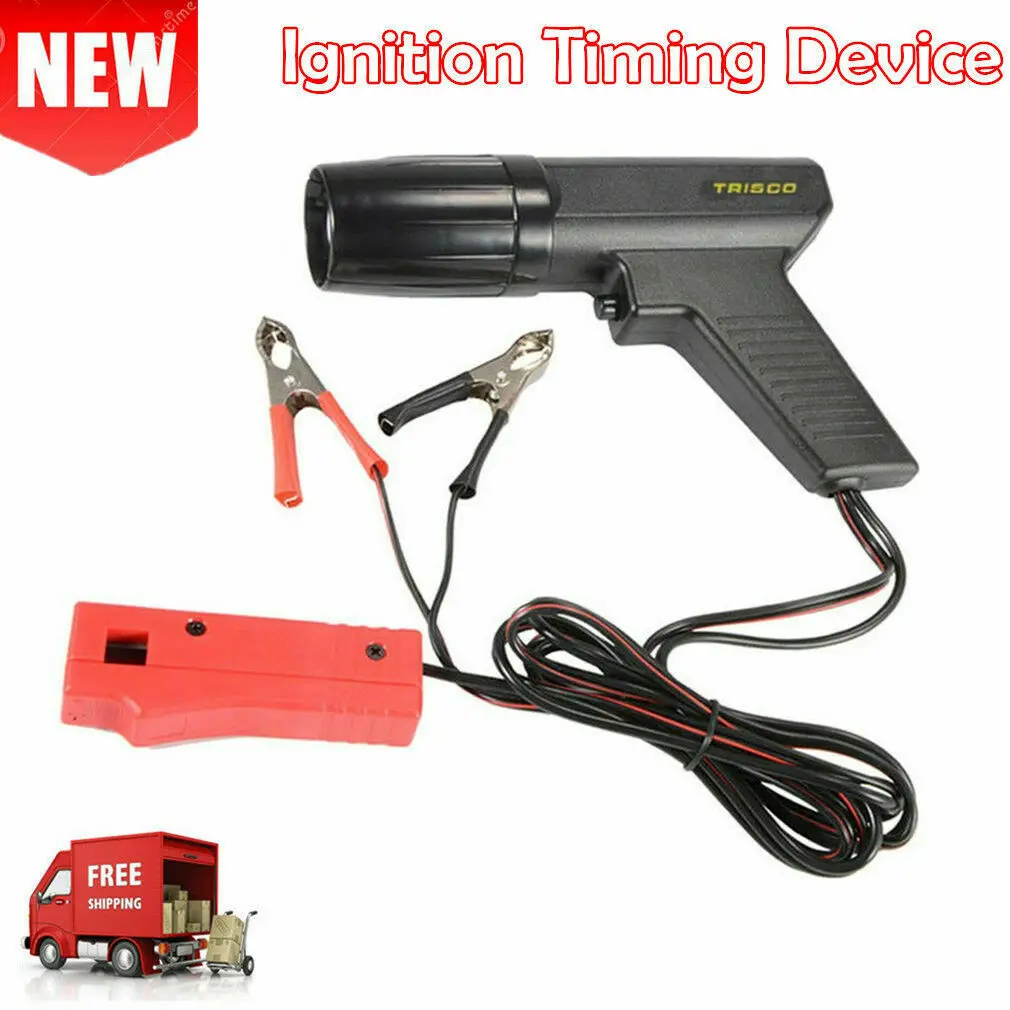

Timing Light Inductive Pickup Ignition Xenon TRISCO TL-122

Description

1.   Genuine Trisco Timing Light

2.   Great garage / workshop addition to assist with distributor timing tune up

3.   Suitable for checking ignition timing on automotive, agricultural and marine engines

Great garage / workshop addition to assist with Distributor Tune Up. Suitable for checking ignition timing on automotive Engines, agricultural and marine engines (12V/DC).

Features include

  • XENON bulb and inductive pick-up

  • Impact-resistant housing with on/off trigger

  • Neon double check indicator insures proper hookup or detects faulty flash tube.

  • Specific feature or reverse polarity protection.

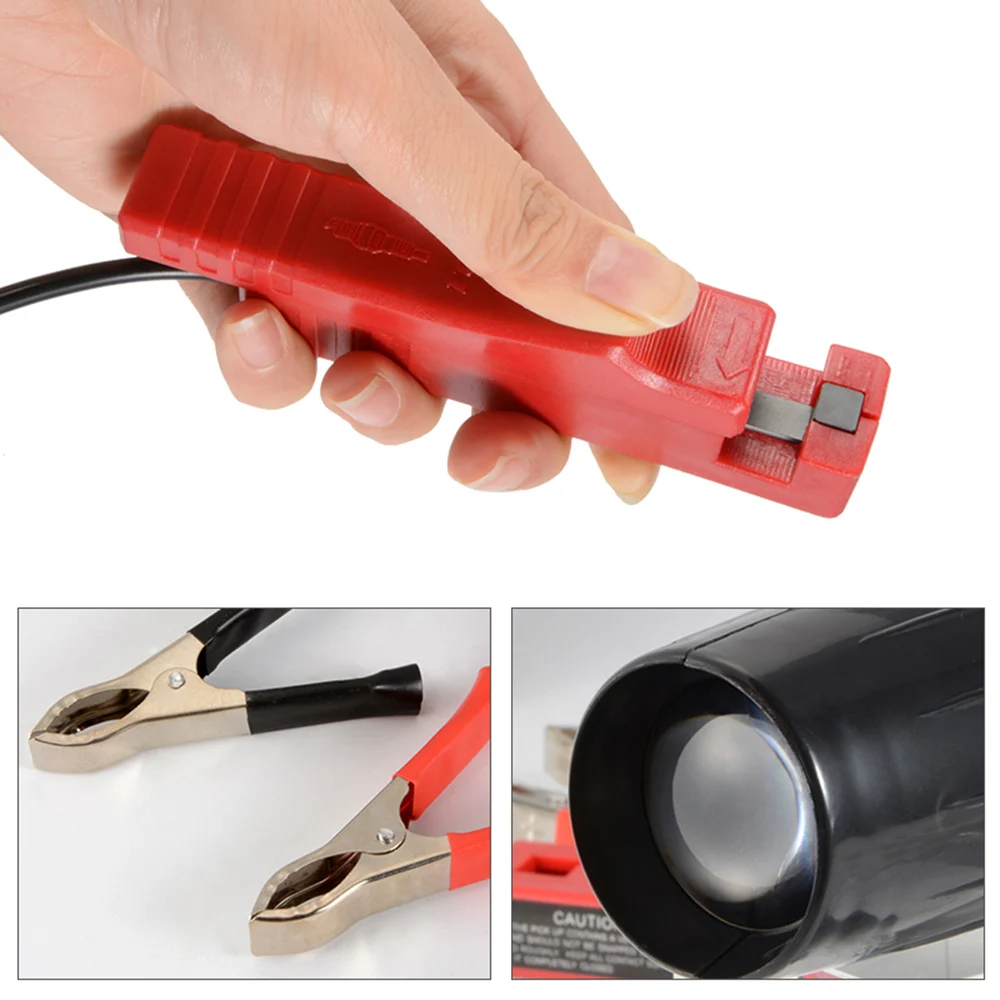

  • Heavy duty inductive pick-up clamps and leads for easy and safe operation.

  • Bright XENON flash tube provides concentrated light for easy visibility of timing mark.

  • Great addition to home workshop




Never Have To Worry About Running Out of Power

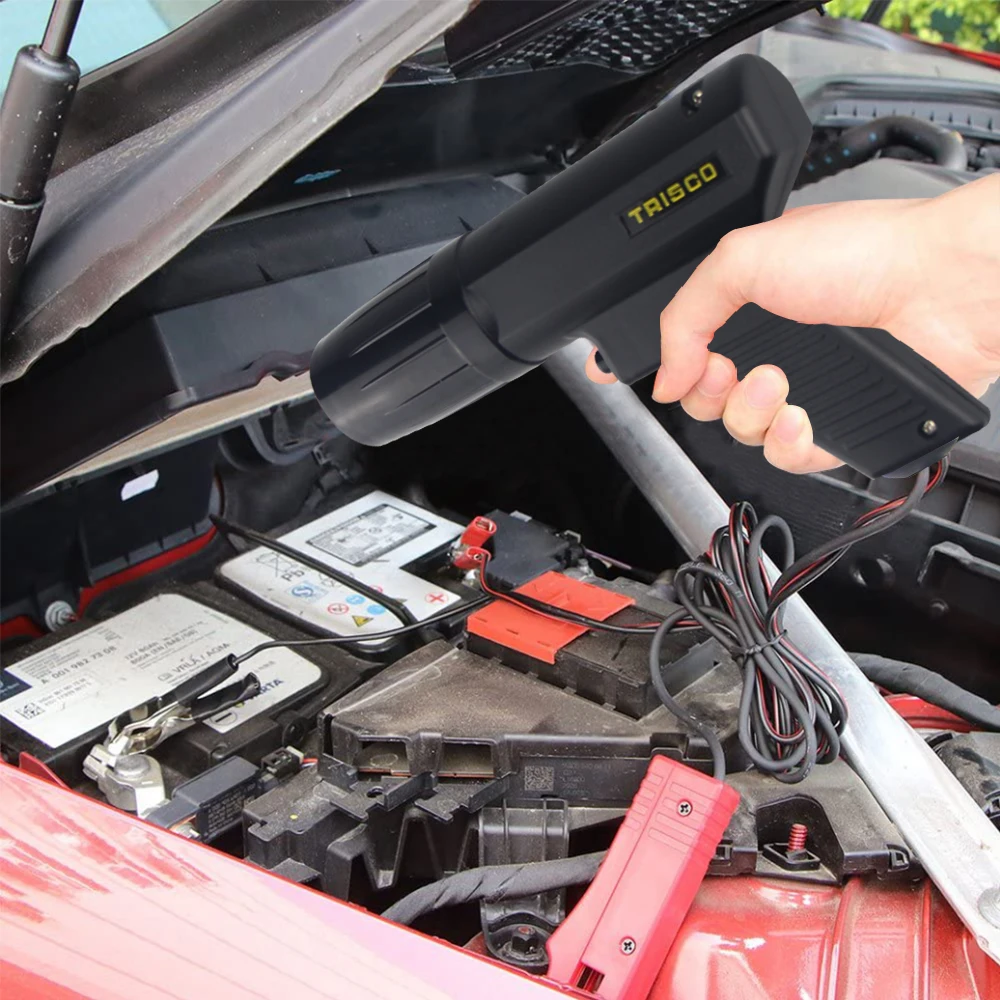

The cool thing about timing lights is that unlike a flashlight, you never have to worry about running out of power the light. That is, as long as your car runs and is connected to a working 12-volt battery. With the engine off, you merely clamp the timing light's red wire to the battery's positive terminal, then the black wire to the battery's negative terminal. Lastly, you take the signal wire and clamp directly to Number 1 spark plug wire.

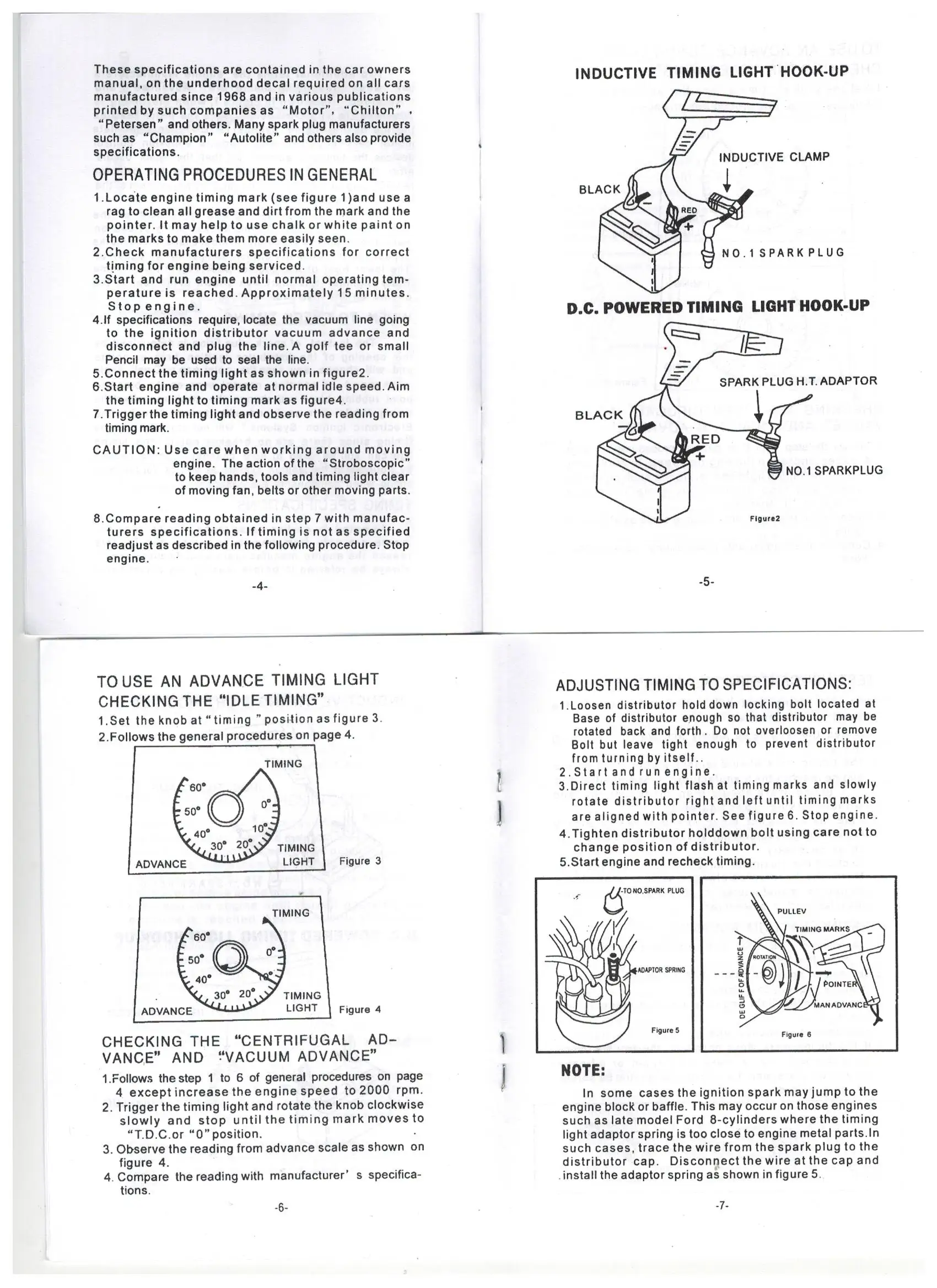

Adjusting timing to specifications:

1.Loosen distributor hold down locking bolt located at Base of distributor enough so that distributor may be rotated back and forth.Do not overloosen or remove Bolt but leave tight enough to prevent distributor from turning by itself..
2.Startand run engine.
3.Direct timing light flash at timing marks and slowly rotate distributor right and left until timing marks are aligned with pointer.Stop engine.
4.Tighten distributor holddown bolt using care not tochange position of distributor.
5.Start engine and recheck timing.

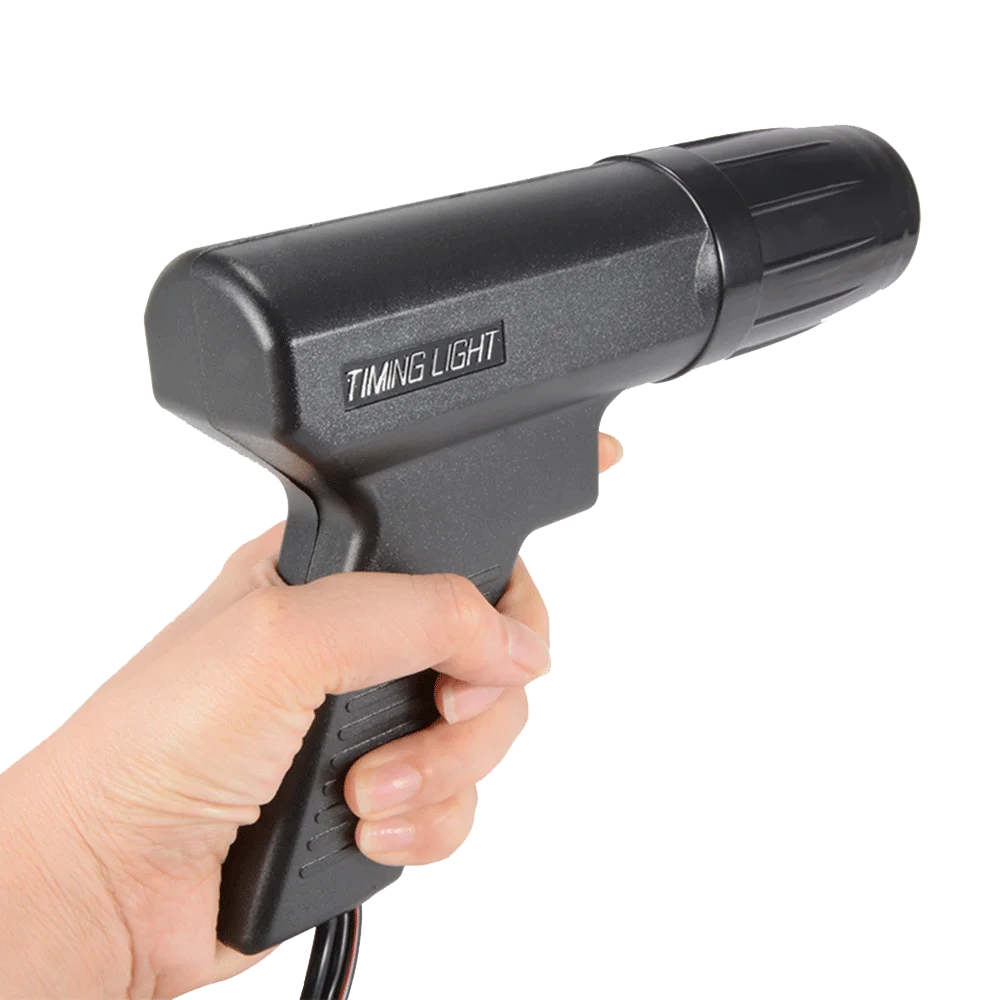

Ergonomic Pistol Grip Design

First, you should know that timing lights come in a few different shapes and sizes.But most people would probably prefer the much cooler, ray gun-shaped, "pistol grip" variety.Because they're more ergonomic inside the close confines of a car's engine bay (yeah, that's it). Handle pistol-type design conforms to the engineering design, the button is comfortable, feels good, facilitates the operation.
