Autoshop Smart tool ECO plus Version Motorbike Programming Smat key /Yamaha Tmax and ODO Corrections Online Updating

List of model packages:

• Version 2U+: SMARTKEY function

• Version 2E+: SMARTKEY function + ODO METER function

• Version 2W+: SMARTKEY function + ODO METER function + SMARTKEY for Tmax

 Free update the lastest version 9.9.6 on July 26th 2022 (Not use for TMax version) |
 Click here to download update 9.9.6  |   Click here to watch guide video

Free update ( All Version )

• Adjust Odometer: Genio-2019, NVX-2021, Aerox-2021, Lead 2022, Vario 160-2022, Scoopy-2021 (Watch video)

• Read Full real  KEYID store in SCU Yamaha, Suzuki

• Reset to new and change Honda SCU part type (33 pins) (RESET SCU): K01, K29, K35, K77, K97, K0G94, K0R, K1N (Watch video 1) (video 2).

• Restore factory data and edit ECMID store in SCU Yamaha (12 pins):  Aerox, Qbix, NVX, Janus, Grande, Nmax, Xmax, Freego (Reuse the old SCU and ECU) (Watch video)

• Restore factory data and edit ECMID store in SCU Suzuki Raider/ GSX 150

SMARTTOOL2 ECO Plus version
Upgrade Immo Piaggio Medley PGQ16, PGU09, PGT10 (Pay fee license) (U+, E+, W+)

• Support all keys lost solution for Piaggio/ Vespa Medley: PGQ16 (RISS), PGU09, PGT10 (Watch PGQ16 video, PGU09 video) (view manual to make new key PQG16)

• Reset to new ECMID store in ECU for Honda SHMode 2021, Vision 2021 and Yamaha AEROX 2018-2021

• ON/OFF smartkey mode (Smartkey OFF) for Honda ECU Shindengen (2016 - 2021), add PCX160, Vario160 (Reuse the old ECU or run bike without smartkey system) (Watch video)

• ON/OFF immobilizer mode (IMMO OFF) for Piaggio/Vespa MIUG3 (ECU on throttle) (engine run without immo system, quick repair bike when antena or key broken)

• Read KeyID and add new key (by reset code): Honda XADV 750 - 2021, Forza 750 - 2021, CBRR 1000 - 2021 (Watch video 1, video 2)

* Accessories (Upgrade set) including:

• 01 Honda Kline cable (4 pins) (2016-2020) (For ON/OFF smartkey mode)

• 01 Honda 2021 cable (6 pins) (2021-2022) (Euro mode)

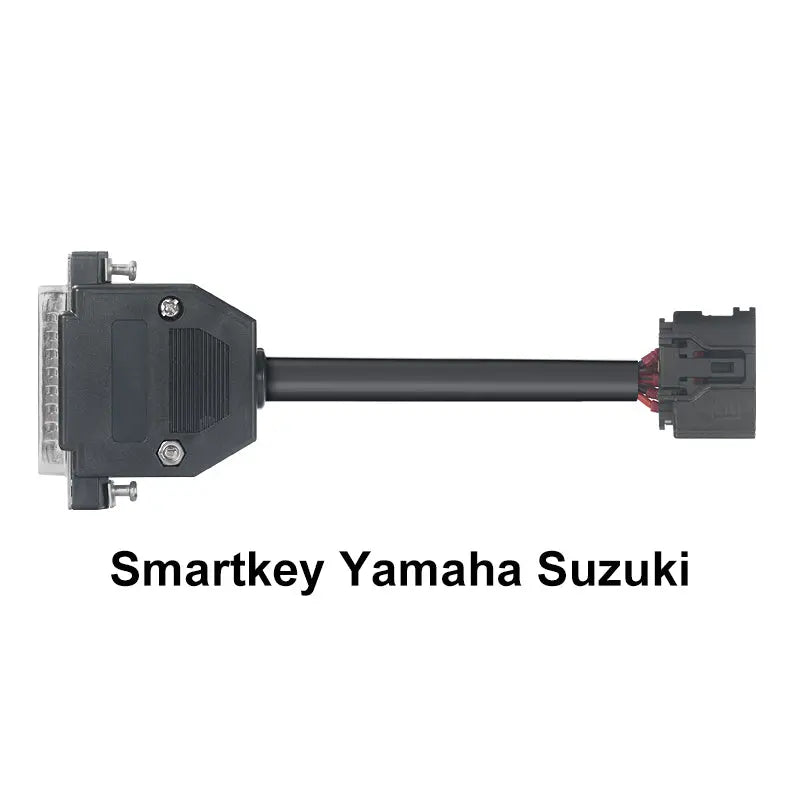

• 01 Reset ID cable for Suzuki/ Yamaha

• 01 Adapter ACG for Reset to new ECM Honda 2021

*updating Fee: 150 USD + shipping fee (Contact seller or factory  whats app : 86-18126288792  for detail)

•  Online upgrade Free one year

Updating Information  New ：

Smartkey Programming

-  Support for 39-pin HONDA SCU (Need to buy a new cable))

-  Read/Delete KEYID and ECMID codes

-  Program additional keys using Reset Code

-  Check synchronization between key and SCU

-  HONDA FORZA/ X-ADV 750 2021, CBR 1000RR 2021

-  Reset KEYID for PIAGGIO/VESPA motorcycles. ECU codes: PGN04, PGS02, PGS06, PGR02, PGR04, PGZ04 (Support for U+, E+, W+ versions)

-  Update for reading KEYID/ECMID codes through the ignition switch of YAMAHA TMAX (support for W, W+)

ECM Programming (Support for versions: U+, E+, W+)

*Read and reset ECMID code for HONDA ECM Shindengen/Keihin Canbus

-  FORZA 125/150/ ECM code: K40H-A01

-  FORZA 350 ECM code: K1B/K1BA

-  SH MODE ECM code: K1NA_D01

-  PCX160 ECM code: K1YA-D12-E02

-  X-ADV ECM code: MKH 2019

-  CBR 1000RR

* SMARTKEY ON/OFF feature: added support for HONDA motorcycles: SH 350 2022, FORZA 350, CBR 1000RR 2021, Winner 2022, SCOOPY 2022, AIR BLADE 2022, Vario/ Click 2022

* Reset ECMID (Erase ECM) for YAMAHA motorcycles: Nvx/Aerox 2017-2024, Exciter 2021 B5V0 and ECM part codes: B64-H594A-xx, B63-H594A-xx, BF6-H594A-xx, B1T-H594A-xx, B6H-H594A-xx, B3F-H594A-xx, BBP-H594A-xx, B6Y-H594A-xx, BBR-H594A-01, BBB-H594A-00

1. Smart key/ Keyless Honda, Yamaha and Suzuki

• Read KEYID from smart box

• Read ECMID from smart box

• Read ECMID from ECM box

• Erase key lost

• Erase the missing key code

• Reflash EEPROM data of smart box

• Register new keys in the all keys lost case.

• Add key by key

• Check the synchronization between key and smart box

• Change ON / OFF key status

• Sync smart box and ECM automatically

• Replace new ECM

• Register up to 6 keys at once bike Honda

List of models:

• HONDA: AIRBLADE (2018-2021), CLICK 125i (2018-2021), LEAD 125 (2018-2021), PCX( 2016-2021), SH 125/150/300(2016-2021), SH MODE( 2016-2020), VISION (2018-2021), VARIO 125/150 (2018-2021), X-ADV 750, FORZA 300 (2018-2020), SCOOPY (2016-2021), FORZA 300 2021, X-ADV 750 2021.

• YAMAHA : AEROX (2018-2021), GRANDE (2019-2021), FREE GO (2020-2021), LATTE 2020 , JANUS ( 2017-2021), NVX(2017-2021) , QBIX, XMAX, NMAX, T-MAX 530i, T-MAX DX, T-MAX SX SPORT, T-MAX IRON MAX (2015 - 2021)

• SUZUKI : RAIDER FI (2017-2020), GSX FI (2017-2020)

• Supported part number: K12, K44, K59, K66, K01, K02, K77, K78, K29, K36, K96, K97, K1F, K1R, K1N, K1Z, K1Y, K0R, K0S, K2C, K1B, K1W.

2. PIAGGIO/ VESPA

• Register the new keys in the all keys lost case.

• Reset, erase all keys of IC / ECM.

• Support register new keys.

• List of supported ECU:AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGN04/PGS02/PGT01



The detailed list

3. Odometer adjustment

• Read the current mileage

• Correct odometer value of motorcycle dashboard.

• Restore the original data

• Automatic correct odometer

• All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio

List of models:

• HONDA: Airblade (2013-2019), Airblade 125/150 2020, Click (2013 -2020), Forza 2018, Msx 125/150, Future Neo, Future X, Lead 125 (2013-2020), PCX( 2008-2019), PCX 2021, SH 125/150/300(2015-2016), SH 125/150(2017-2019), SH 125/150 2020, SH Mode ( 2015-2020), SH Mode 2021, Sonic 125, Vario 125/150 (2013-2020), Vision 2021, Wave 125, Winner 150, Winner X, Zoomer X, Scoopy 2018, XADV 2018, CUB, Beat 2018, Beat Stress, CBR 15DR/150/250, CBR 500/500F/650, CBR 1000/ 1000RR, CRF 250…

• YAMAHA: Aerox, Acruzo, Janus, Nvx, TFX, MSLAZ, Acruzo, Exciter 150 (2014-2021), Fz150/150i/FZ16, Grande, Nouvo LX/4, Nouvo SX/5, Qbix, R1/ R6, R15/RR15D,  R15 2016, R15 , Free Go 2019, Nmax ABS, Grand Filano, Xmax, Tmax, MT07, MT09, FreeGo, Latte, Vixion 2018

• PIAGGIO/VESPA: V4_ 50cc, V6_ 50cc, Liberty( 2017-2019), Medley, Primavera (2017-2019), Sprint (2017-2019), Vespa 2020, Có Logo _EEPROM_R5F, Không Logo _EEPROM_R5F

• SUZUKI: An150, En 150, Raider (2012-2015), Gsx ( 2009-2015), Gsx Fi (2016-2019), Raider Fi( 2016-2019)…

• KAWASAKI: Z1000R/Ninja, Z125, NINJA 250, VERSY 650, Z300, Z900,…

The detailed list









Functional table packages

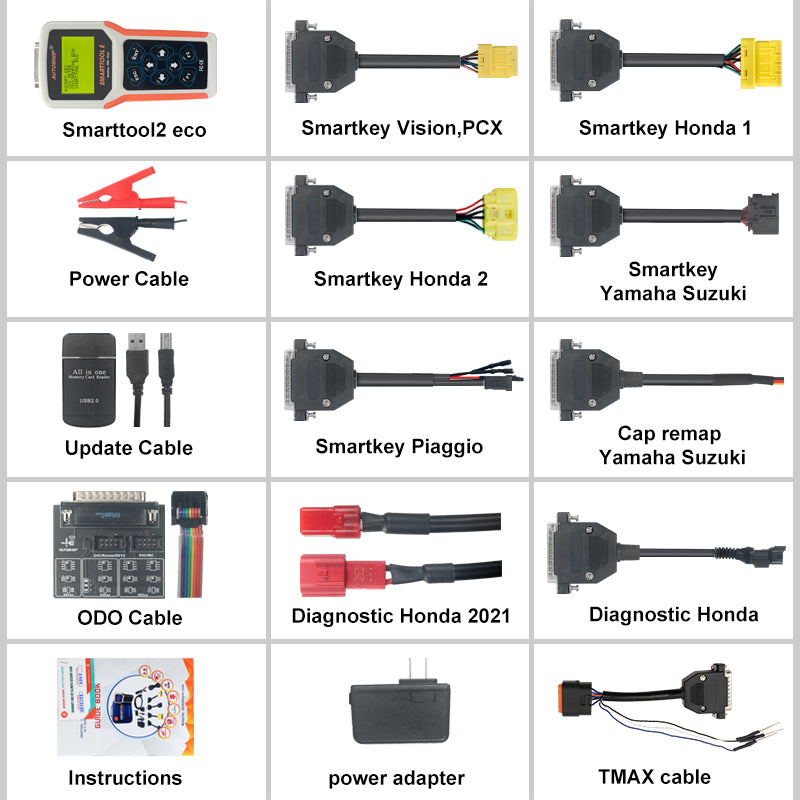

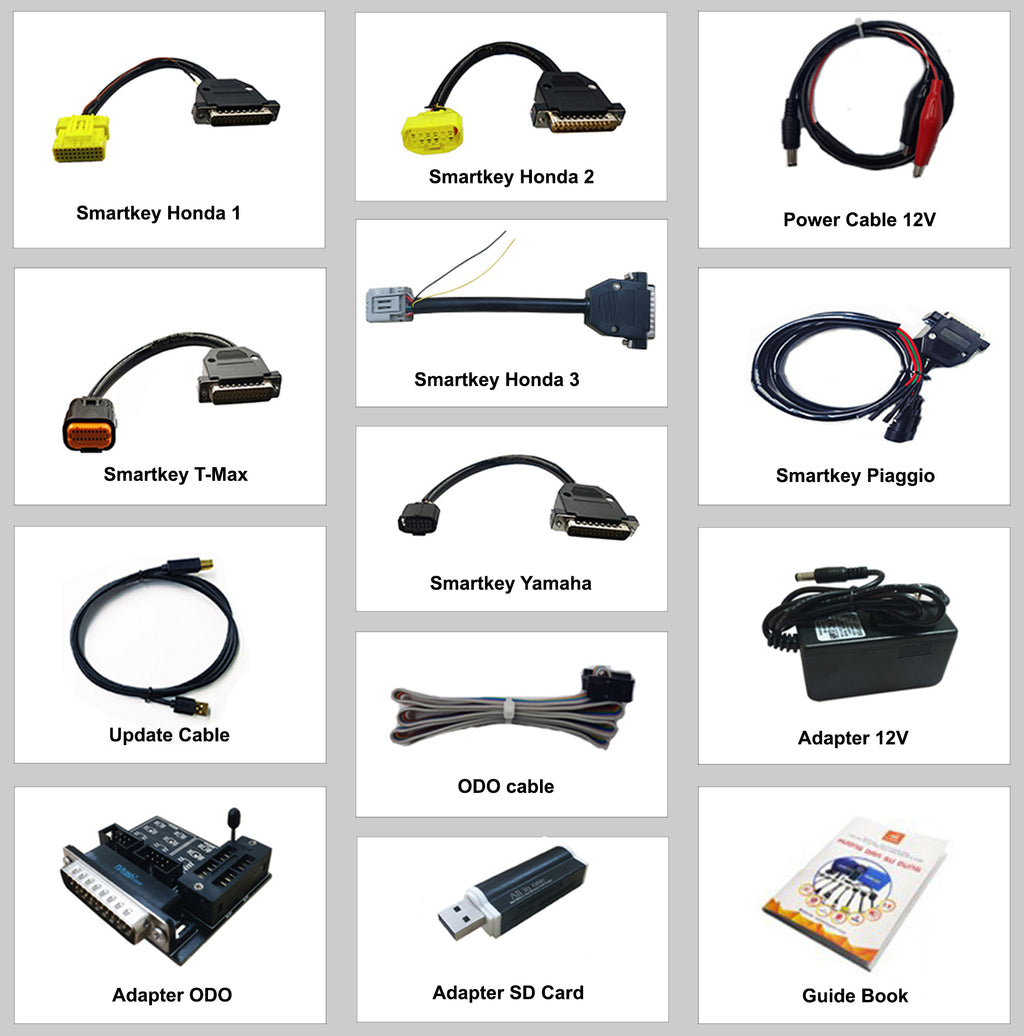

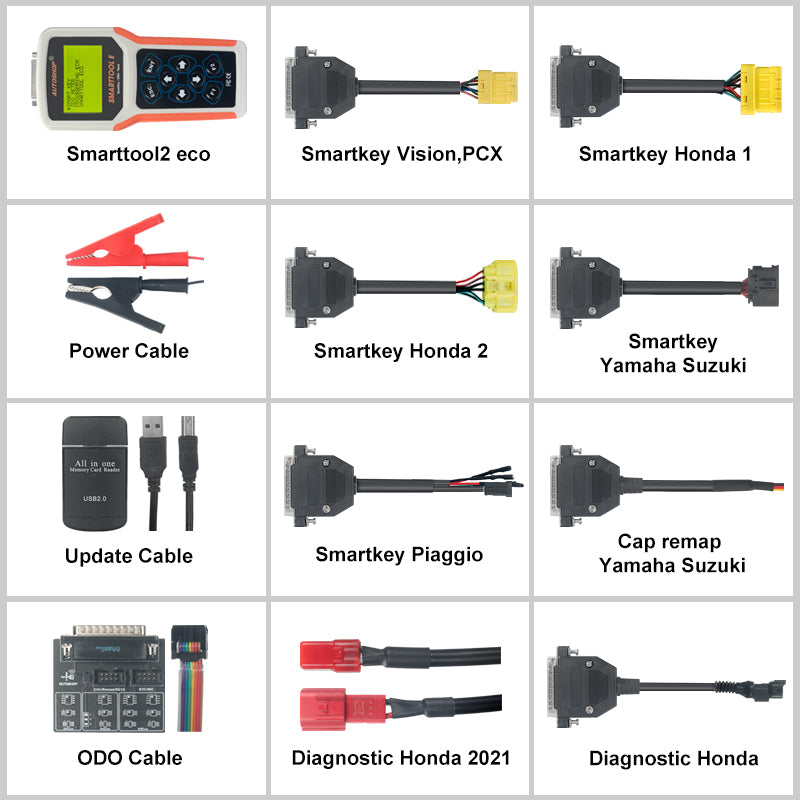

4. List of accessories   （ smarttool eco）
