TNM7000 UNIVERSAL ECU Programmer With multiple language support

Download Device support list

TNM7000 UNIVERSAL ECU Programmer

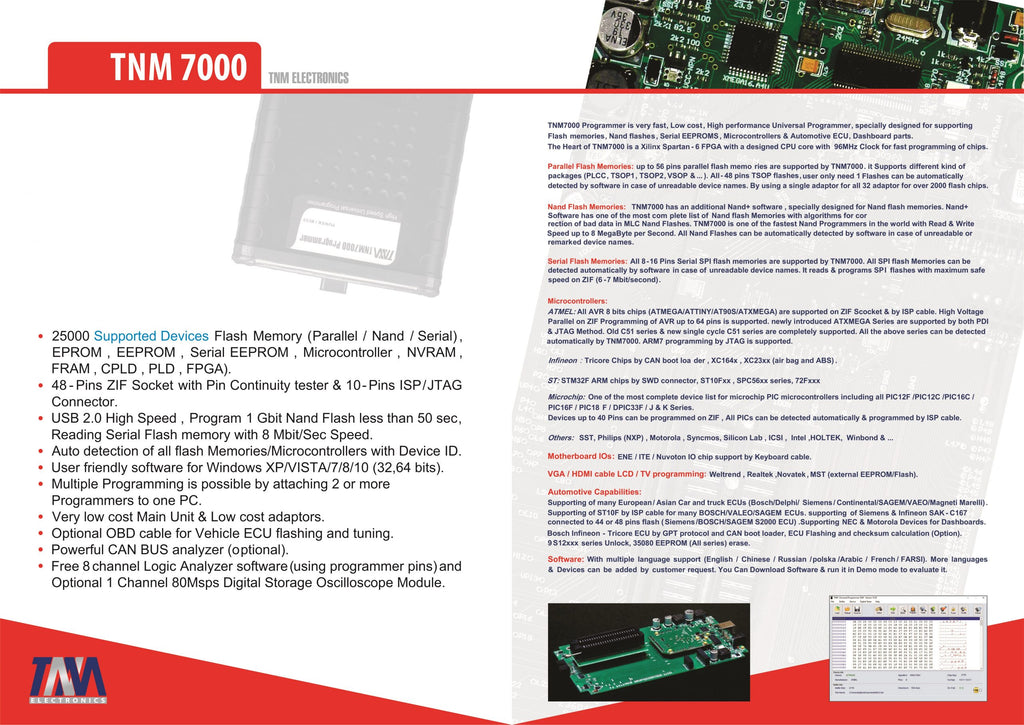

25000 Supported Devices Flash Memory (Parallel / Nand /Serial) , EPROM , EEPROM , Serial EEPROM , Micro-Controller , NVRAM , FRAM , CPLD , PLD , FPGA). 48-Pins ZIF Socket with Pin Continuity tester ; 10-Pins ISP/JTAG Connector. USB 2.0 High Speed ,Program 1 Gbit Nand Flash less than 50 sec , Reading Serial Flash memory with 8 Mbit/Sec Speed.

Auto detection of all flash Memories/Micro-controllers with Device ID.

User friendly software for Windows XP/ VISTA/7/8/10 (32,64 bits).

Multiple Programming is possible by attaching 2 or more Programmers to one PC.

Very low cost Main Unit; Low cost adaptors.

 Optional OBD cable for Vehicle ECU flashing and tuning.

• Powerful CAN BUS analyzer (optional).
• Free 8 channel Logic Analyzer software (using programmer pins) and Optional 1 Channel 80Msps Digital Storage Oscilloscope Module.

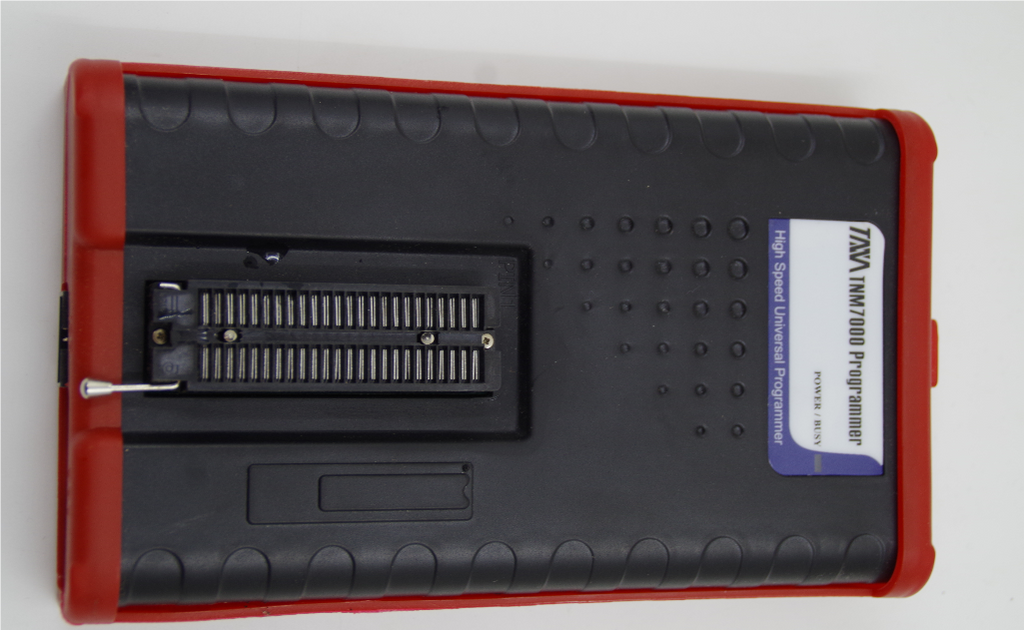

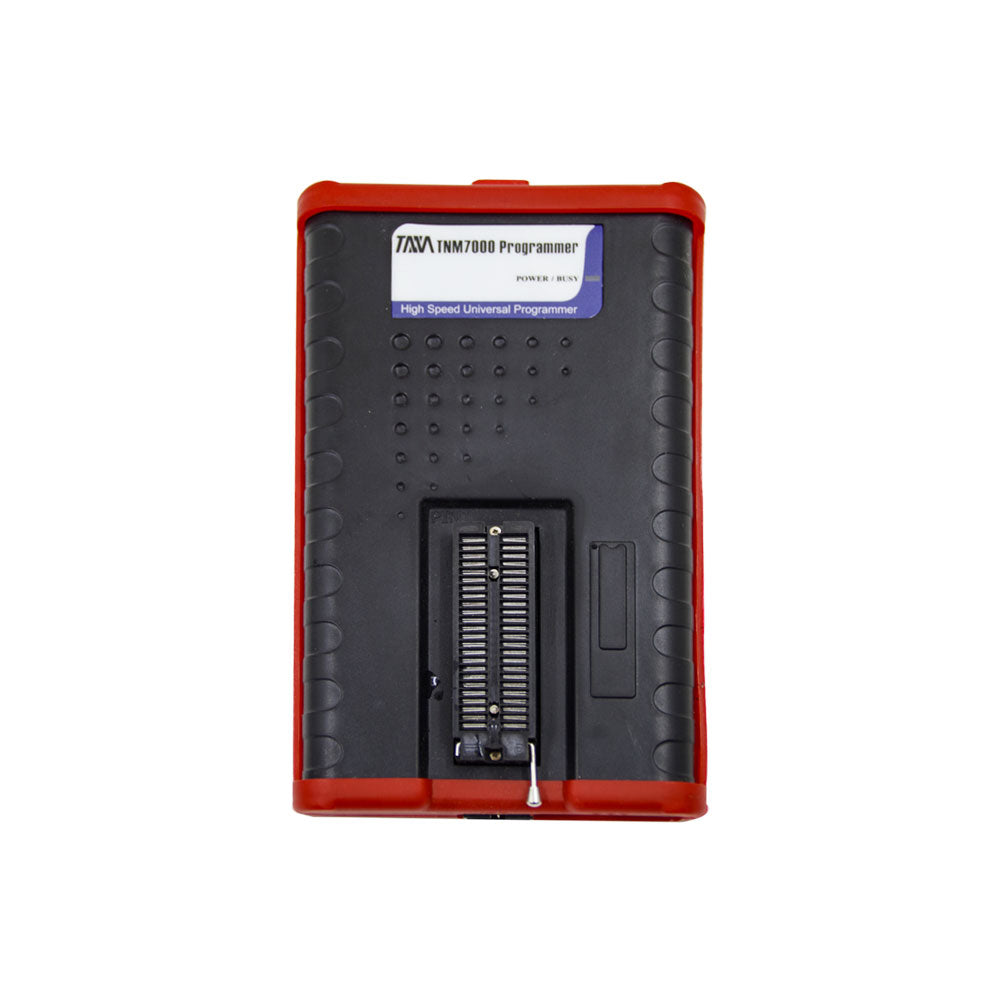

• TNM7000 Programmer is very fast , Low cost , High performance Universal Programmer , specially designed for supporting Flash memories , Nand flashes , Serial EEPROMS , Micro-controllers & Automotive ECU , Dashboard parts. The Heart of TNM7000 is a Xilinx Spartan-6 FPGA with a designed CPU core with 96MHz Clock for fast programming of chips.
• Parallel Flash Memories: up to 56 pins parallel flash memories are supported by TNM7000. it Supports different kind of packages (PLCC , TSOP1 , TSOP2 ,VSOP & …). All Flashes can be automatically detected by software in case of unreadable device names. By using a single adaptor for all 32-48 pins TSOP flashes , user only need 1 adaptor for over 2000 flash chips.
• Nand Flash Memories: TNM7000 has an additional Nand+ software , specially designed for Nand flash memories. Nand+ Software has one of the most complete list of Nand flash Memories with algorithms for correction of bad data in MLC Nand Flashes.
• TNM7000 is one of the fastest Nand Programmers in the world with Read & Write Speed up to 8 MegaByte per Second.
• All Nand Flashes can be automatically detected by software in case of unreadable or remarked device names. Serial Flash Memories: All 8-16 Pins Serial SPI flash memories are supported by TNM7000. All SPI flash Memories can be detected automatically by software in case of unreadable device names. It reads & programs SPI flashes with maximum safe speed on ZIF (6-7 Mbit/second)
• Microcontrollers: ATMEL: All AVR 8 bits chips (ATMEGA/ATTINY/AT90S/ATXMEGA) are supported on ZIF Scocket & by ISP cable. High Voltage Parallel on ZIF Programming of AVR up to 64 pins is supported. newly introduced ATXMEGA Series are supported by both PDI & JTAG Method. Old C51 series & new single cycle C51 series are completely supported. All the above series can be detected automatically by TNM7000. ARM7 programming by JTAG is supported. Infineon: Tricore Chips by CAN boot loader , XC164x , XC23xx (air bag and ABS) . ST: STM32F ARM chips by SWD connector, ST10Fxx , SPC56xx series, 72Fxxx
• Microchip: One of the most complete device list for microchip PIC microcontrollers including all PIC12F /PIC12C /PIC16C / PIC16F / PIC18F / DPIC33F / J & K Series. Devices up to 40 Pins can be programmed on ZIF , All PICs can be detected automatically & programmed by ISP cable. Others: SST, Philips (NXP) , Motorola , Syncmos, Silicon Lab , ICSI , Intel ,HOLTEK, Winbond & … Motherboard IOs : ENE /ITE / Nuvoton IO chip support by Keyboard cable. VGA / HDMI cable LCD / TV programming: Weltrend , Realtek ,Novatek ,MST (external EEPROM/Flash).

Automotive Capabilities:

• 1. Supporting of many European / Asian Car and truck ECUs (Bosch/Delphi/Siemens / Continental/SAGEM/VAEO/Magneti Marelli) .
• 2. Supporting of ST10F by ISP cable for many BOSCH/VALEO/SAGEM ECUs .
• 3. supporting of Siemens & Infineon SAK-C167 connected to 44 or 48 pins flash (Siemens/BOSCH/SAGEM S2000 ECU) .
• 4.Supporting NEC & Motorola Devices for Dashboards. Bosch Infineon-Tricore ECU by GPT protocol and CAN boot loader, ECU Flashing and checksum calculation (Option). 9S12xxx series Unlock, 35080 EEPROM (All series) erase.



• Software: With multiple language support (English / Chinese / Russian /polska /Arabic / French /FARSI). More languages & Devices can be added by customer request. You Can Download Software & run it in Demo mode to evaluate it.

Download Device Support List

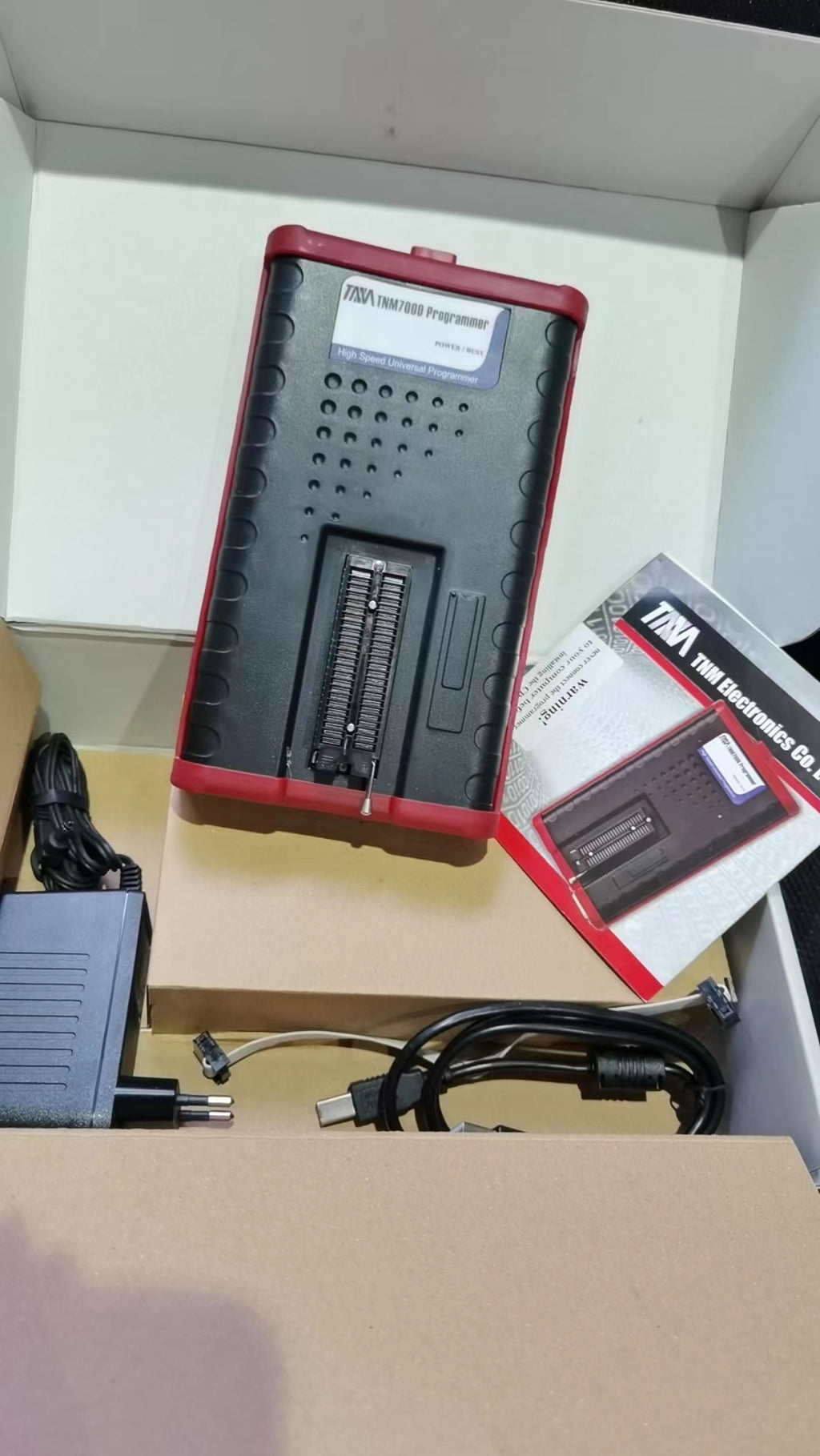

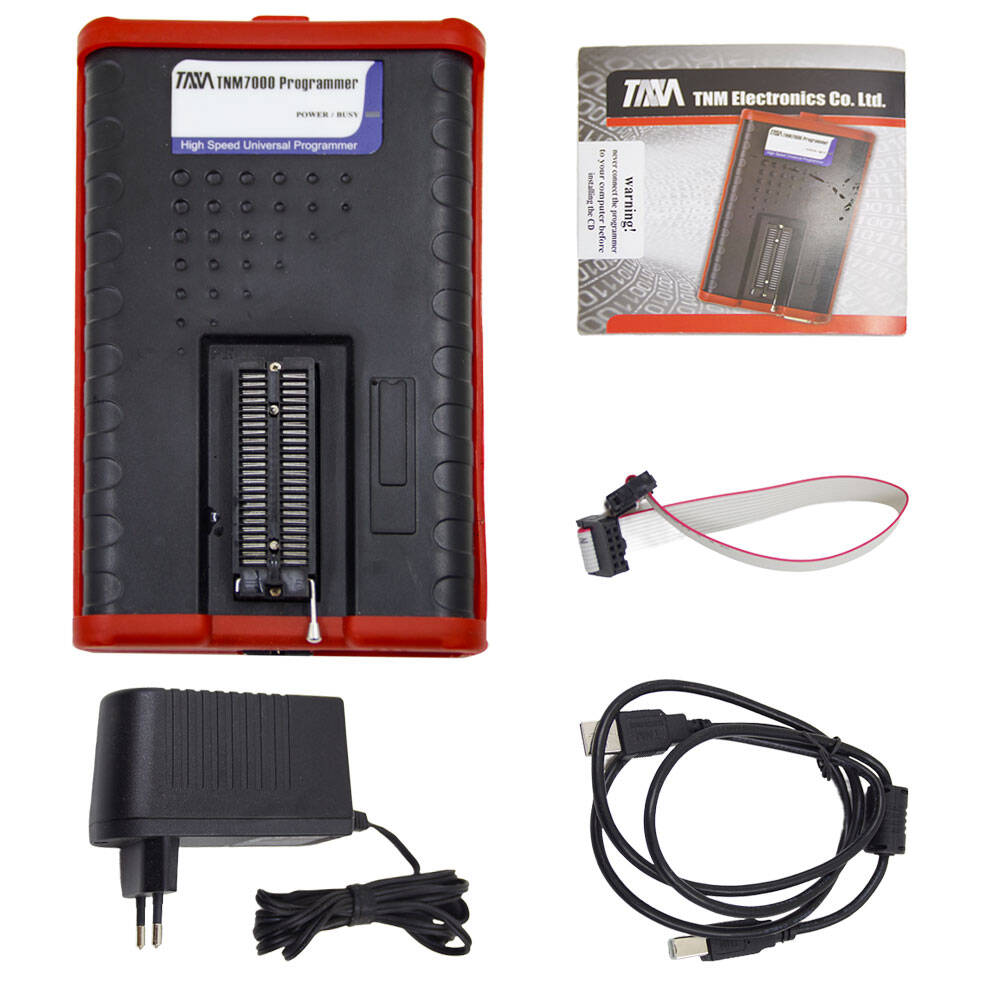

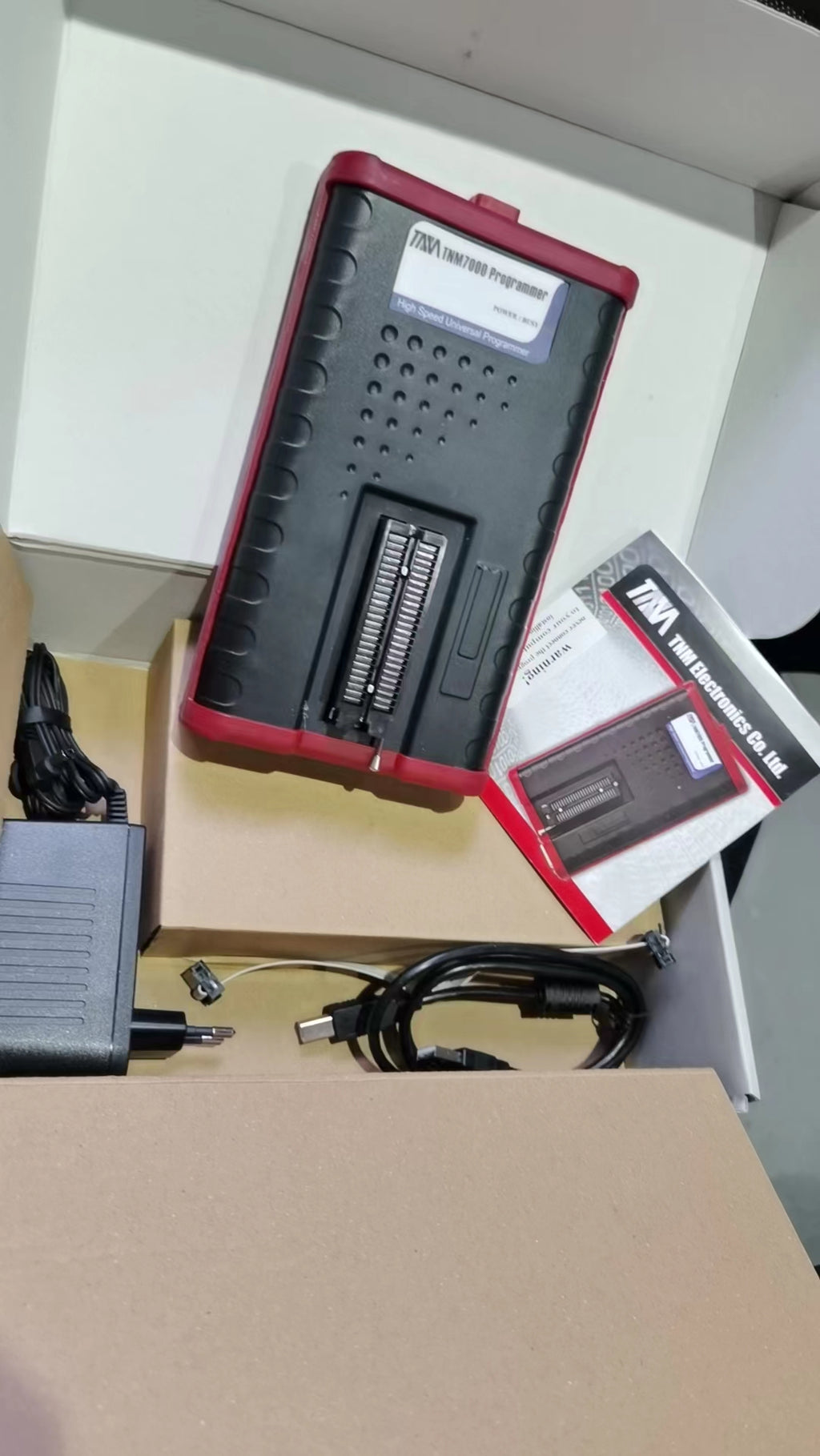

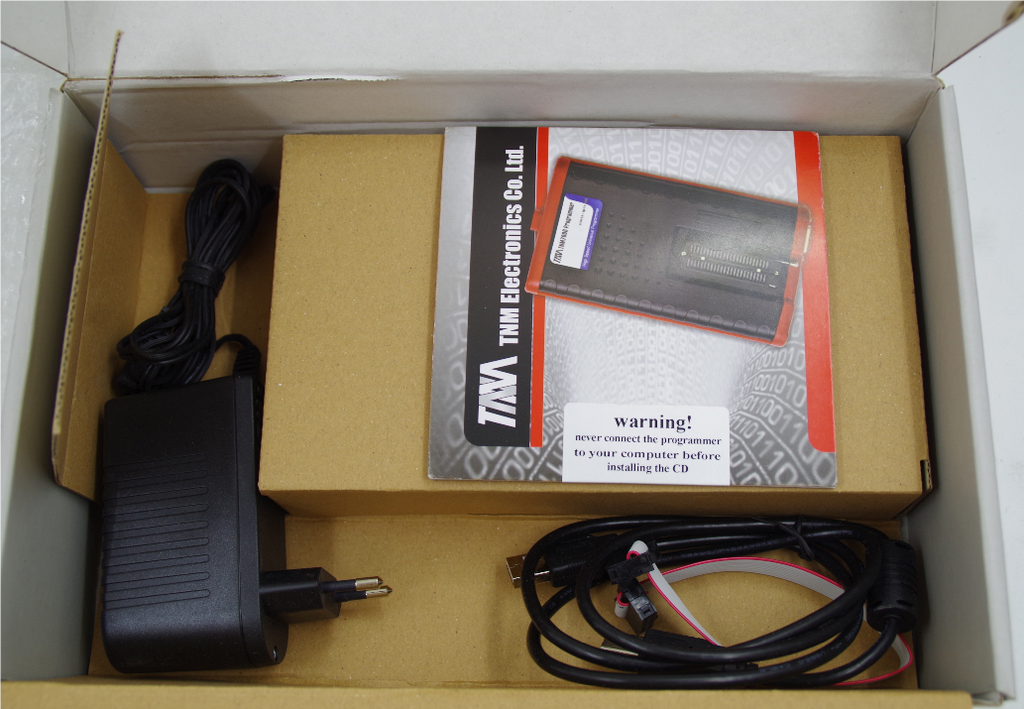

Package List

1pcs* TNM7000 main unit programmer

1PCS* 12V Charger

1pcs*USB Cable

1pcs* ISP/JTAG Connector
