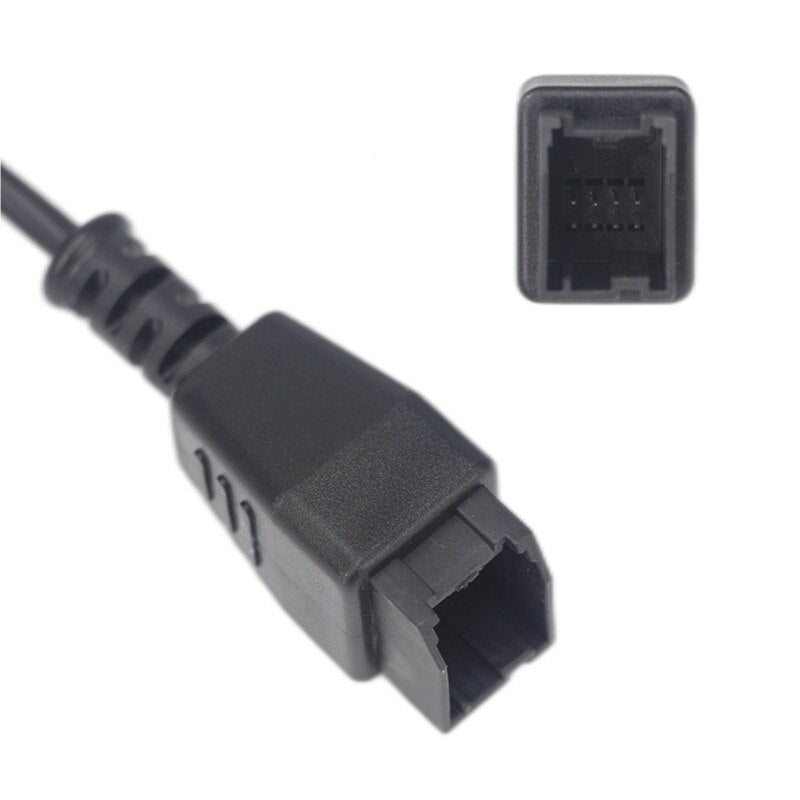

OBDSTAR FCA 12 8 Cable for Chrysler for OBDSTAR X300 DP/X300 DP Plus/X300 PRO4/ DODOMASTER/X300 MIN All Pad Devices

All FCA vehicles after 2018 are equipped with SGW security gateway module to prevent attacks on the vehicle network through the CAN bus. Directly plug in the OBD II-16 connector cannot communicate with them. For this problem, you can connect to the 12PIN and 8PIN connections on the car through the FCA 12 8  cable to help normal communication with the car.

The following models must use this connector

1.for CHRYSLER

2018-for CHRYSLER 300

2018-for CHRYSLER PACIFICA

2.for DODGE

2018-for DODGE CHALLENGER

2018-for for DODGE CHARGER

2018-for DODGE DURANGO

2018-for DODGE JOURNEY

2018-for DODGE RAM

3.for JEEP

2018-for JEEP CHEROKEE

2018-for JEEP GRAND CHEROKEE

2018-for JEEP COMPASS

2018-for JEEP WRANGLER

2018-for JEEP RENEGADE

4.for MASERATI

2018-for MASERATI, includes GHIBLI, LEVANTE,PRESIDENT

5.for FIAT

2018-for FIAT

Support Function

OBD Cluster Calibration, OBD Key Programming, Oil/Service Reset; Also can be used with other diagnostic equipment for read code and clear code etc;

Develop Background

All 2018- FCA (for FIAT/CHRYSLER/ALFA ROMEO) vehicles are equipped with SGW security gateway module, which can prevent access to the vehicle from the OBD2 port through non-original diagnostics. The purpose of this module is to prevent attacks on the vehicle network via the CAN bus.

How to use FCA 12 8 Cable

Find and unplug the 12PIN and 8PIN connectors of the SGW module, and then connect the FCA 12 8 directly to the 12PIN and 8PIN (connecting to the two connectors of the SGW) connector on the car. At this time, normal communication with the car can be realized.

Examples

2018-for DODGE RAM 1500/2500/3500

2018 for DODGE DURANGO

2018 for GRAND CHEROKEE

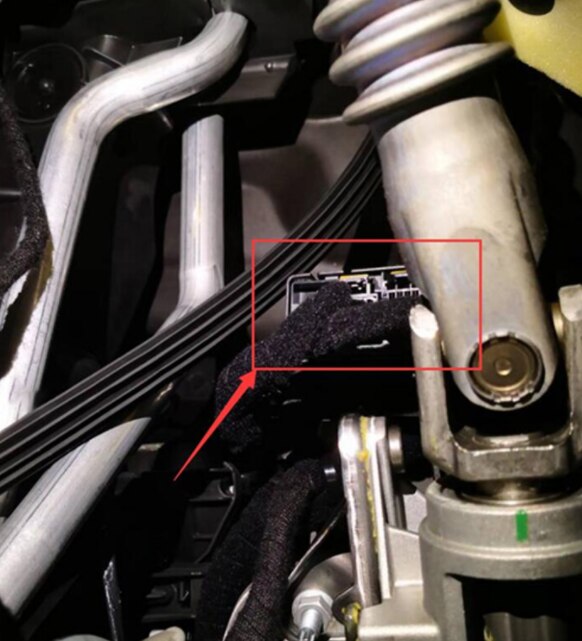

2018 for MASERATI GHIBLI SGW LOCATION
