Motorcycle PIAGGIO TOOL Multiple Language Immobilizer Key Programming Diagnostic for PIAGGIO VESPA Support all ECU part number

PIAGGIO TOOL  is a device for PIAGGO/VESPA, featuring:

*Program and customize immobilizer key systems,

*Diagnose engine and immobilizer security system,

*Compatible with smartphones and tablets, connecting via Bluetooth.

*Read KEYID within the ECU
*Write KEYID into the ECU
*Reset/delete KEYID in the ECU
*Turn ON/OFF immobilizer – key security system
*Read/write EEPROM data in the ECU
*Save/add data in the ECU
*Read and clear engine system and lock system errors
*View engine data parameters
*Reset TPS (Throttle Position Sensor), advanced settings
*Activate mechanism testing.

2. The list support of ECU and motorcycle’s brands up to 2023:

*Support for ECU IMM003/IMM006
*Support for ECU Magneti Marelli IAW15P
*Support for ECU EFI Technology ACII-AC32I
*Support for ECU Magneti Marelli RIU1/RIU2
*Support for ECU Magneti Marelli CDI ACI100/ACI500/ACI600
*Support for ECU Magneti Marelli MIU1/MIU2/MIU4
*Support for ECU Magneti Marelli MIUG3 (M3G1/M3G3)
*Support for ECU EFI Technology PGU09/PGT10/PGV01
*Support for ECU EFI Technology PGQ16/PGV18 (RISS)
*Support for ECU EFI Technology PGN04 / PGR04 / PGZ04 / PGR02 / PGS02 / PGS06

3. Language

English, Vietnamese, Indonesian, Thai, French, Chinese, Spanish, Portuguese.

4. Technical Specifications
*Supported Protocols: ISO 15765-4 (CAN), ISO9141-2 (Kline)
*Phone Compatibility: Android & iOS
*Connection Method: Bluetooth 5.0
*Operating Voltage: From 9V to 18V
*Operating Temperature: -10°C to 50°C

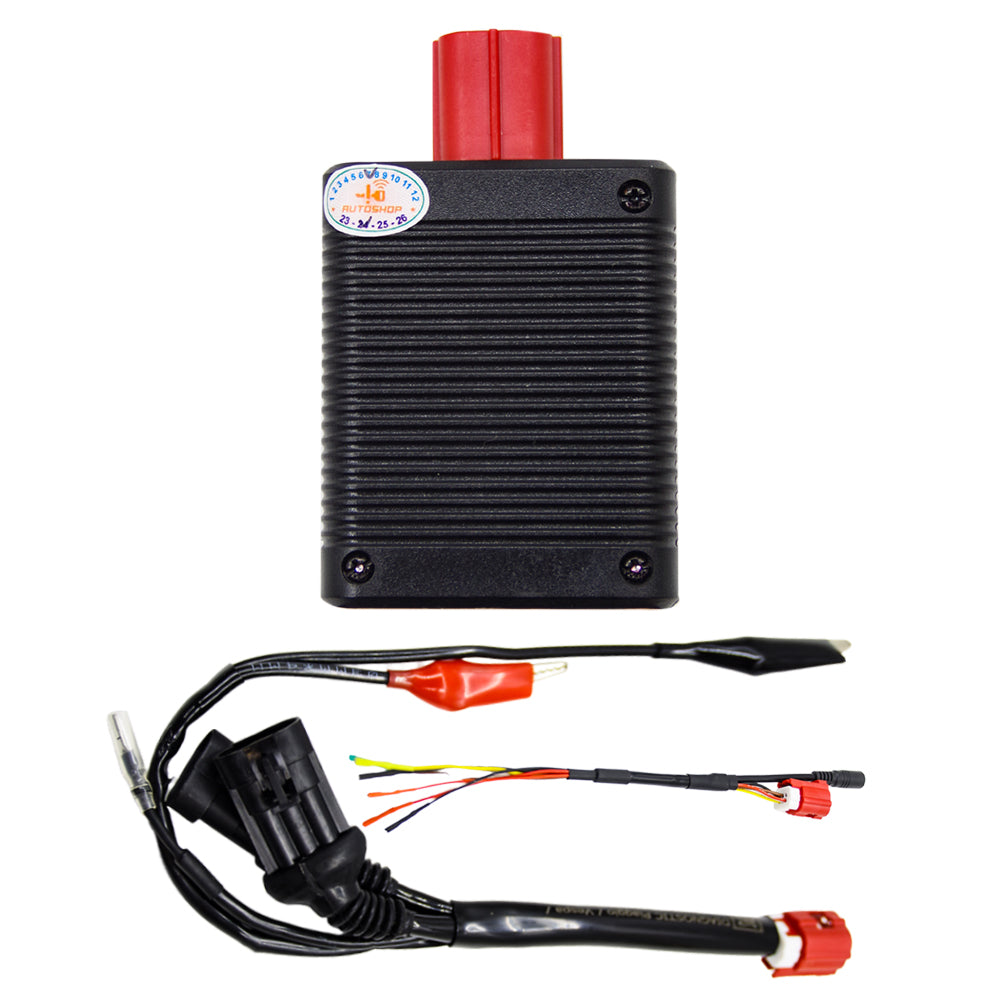

5. package Accessory List

*01 Main Device
*01 Piaggio/Vespa Diagnostic Cable
*01 Quick Start Guide and Activation Code
*01 Protective Case
