Motorcycle Diagnostic Equipment OBDSTAR MS70 Motorbike Scanner Support Moto IMMO Smart Key Programming Odo Recalibration

OBDSTAR MS70 is the new generation of intelligent motorcycle diagnostic equipment, based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 7-inch capacitive touch screen, touch sensitive. Working with a Moto special kit, it can do Moto IMMO, Odo recalibration, ECU programming(ECU tuning & remap will come soon)

OBDSTAR MS70 Motorcycle Diagnostic Scanner

Please check the Supported list before buying:
OBDSTAR MS70 Supported List (2023-05-31)
OBDSTAR MS70 User Manual

Attention:
It takes 3 working days to be in stock after order.
OBDSTAR MS70 is the new generation of intelligent motorcycle, based on RK3128 Quad-Core processor, extremely fast and smooth; equipped with 7-inch capacitive touch screen, touch sensitive. Working with a Moto special kit, it can do Moto IMMO, Odo recalibration, ECU programming(ECU tuning & remap will come soon!).

One year update for free online, after that, 180 USD for a one year update subscription.

Support English only.

Supports Moto Diag

Working with Moto special kit, it supports Moto IMMO, Odo recalibration, ECU programming (ECU tunig & remap will come soon).

OBDSTAR MS70 Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance;
8. Support diagnosis of most of the world's luxury locomotives and thousands of models.

OBDSTAR MS70 Advanced functions:
1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.

OBDSTAR MS70 Motorcycle/Snowmobile/ATV/UTV diagnostic function support series:
ASIA:
AEON, BAJAJ, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA

EUROPE:
APRILIA, BENELLI, BMW, DERBI, DUCATI, GILERA, HM, HUSQVARNA, KTM, MOTO GUZZI, PEUGEOT, PIAGGIO, ROYAL ALLOY, TRIUMPH, VESPA

AMERICAS:
ACELLERA, BRP, HARLEY-DAVIDSON, INDIAN

CHINA:
CFMOTO, CHINA ABS, CHINA ENGINE, HAOJUE, QJBENELLI, SHINERAY, ZONTES

Comparison between OBDSTAR MS70 & MS80

Specifications of OBDSTAR MS70

OBDSTAR MS70 Function Display:



1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

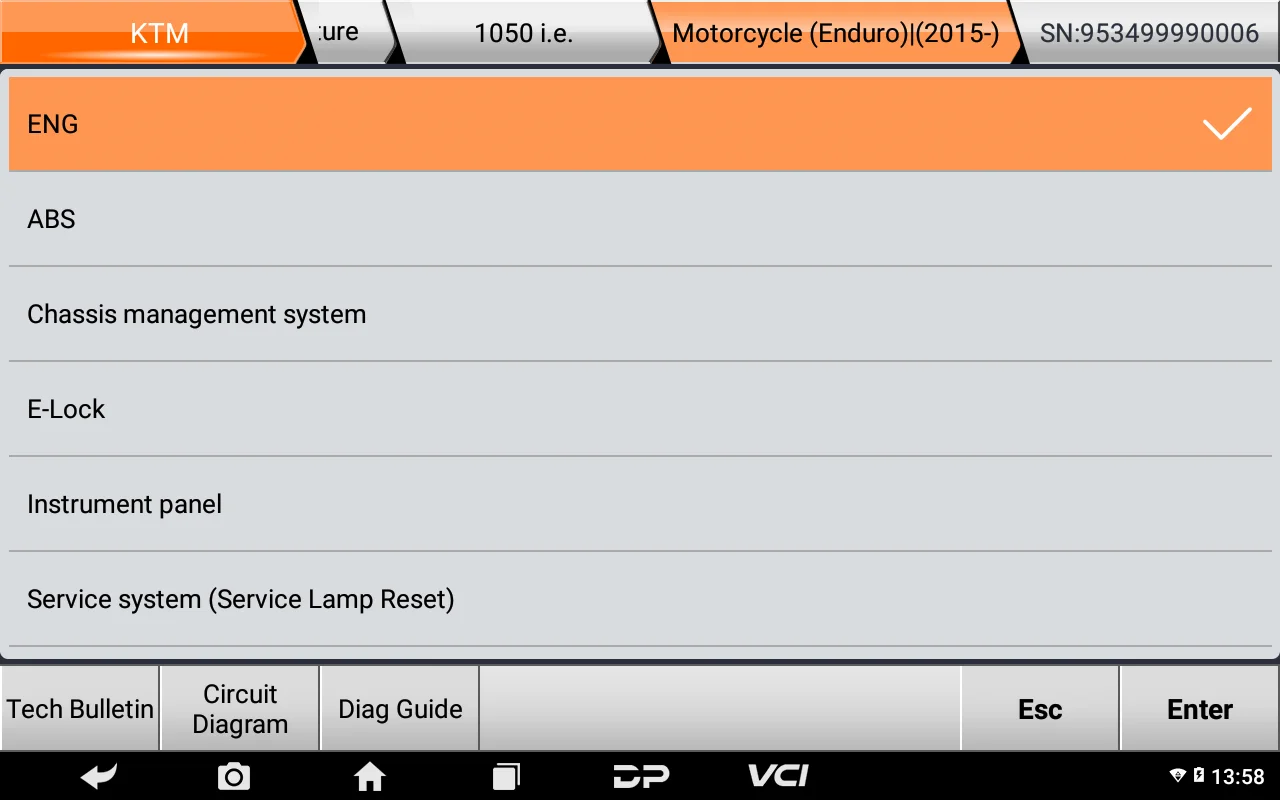

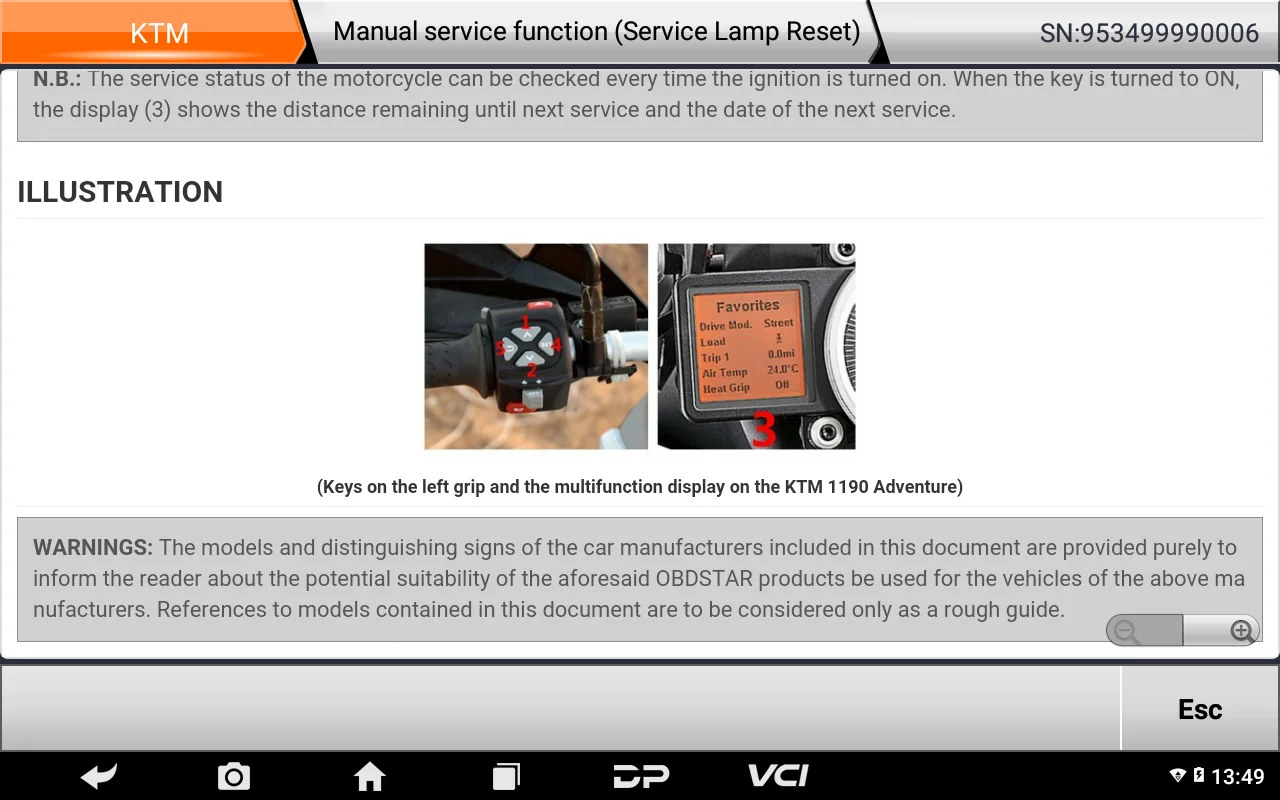

3）Supported System List/ Manual Service Function

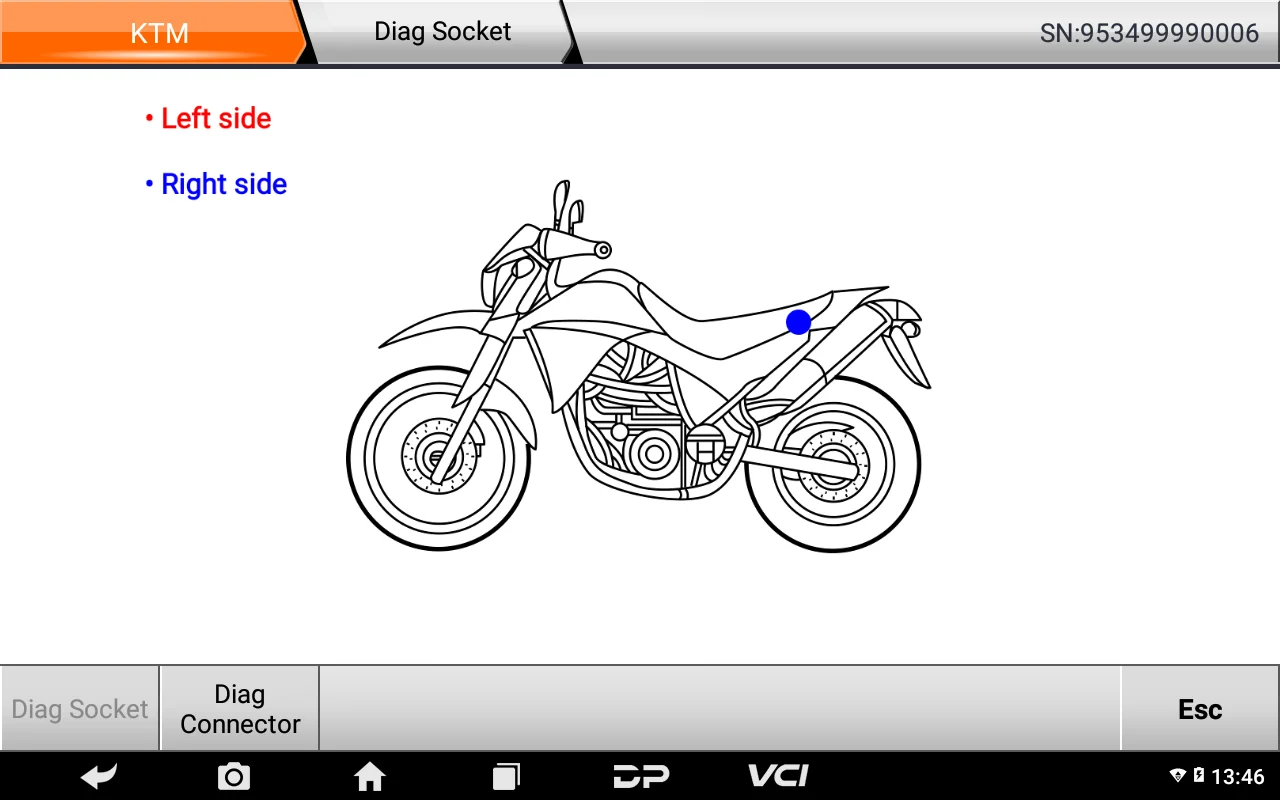

5) Diag Socket/Diag Connector Location

6) Data Flow Text/Waveform Diagram/Instrument Diagram

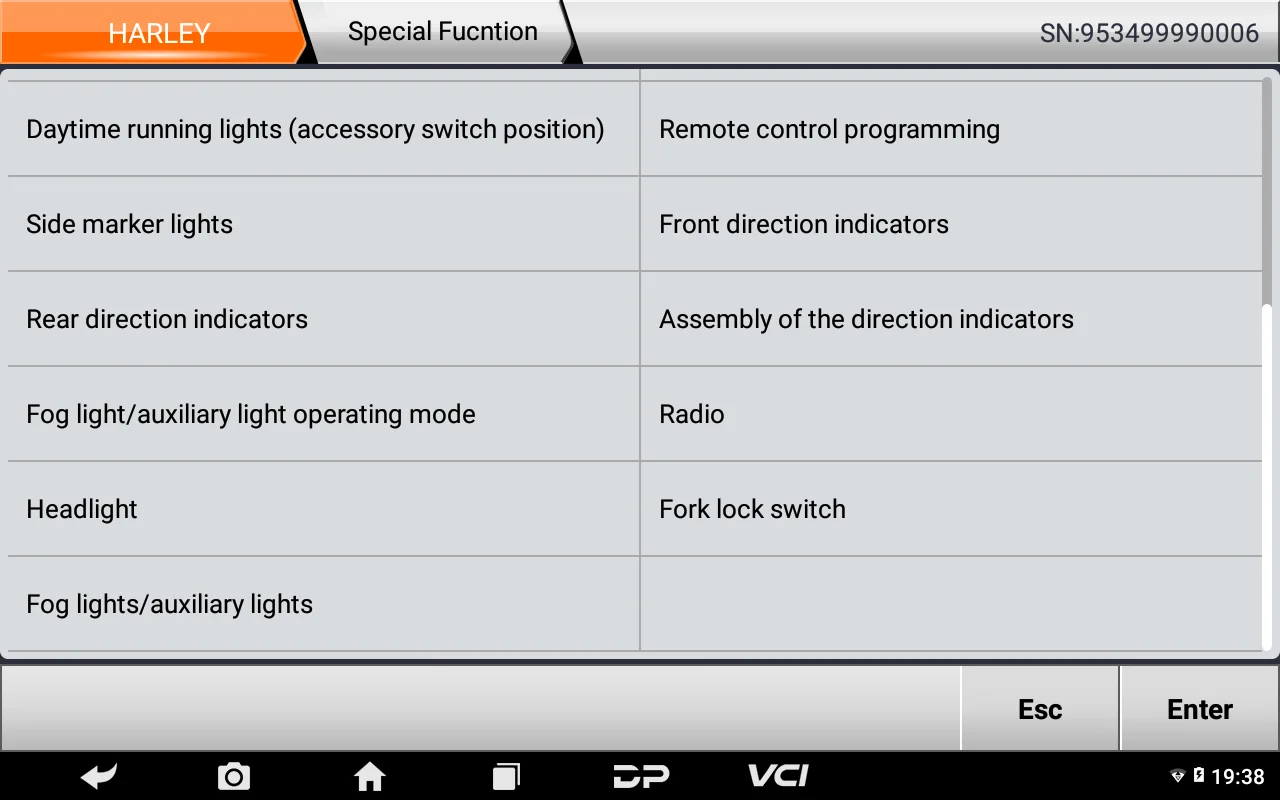

7) Special Function-HARLEY-DAVIDSON

8) Special Function-TRIUMPH



9) Special Function-KTM

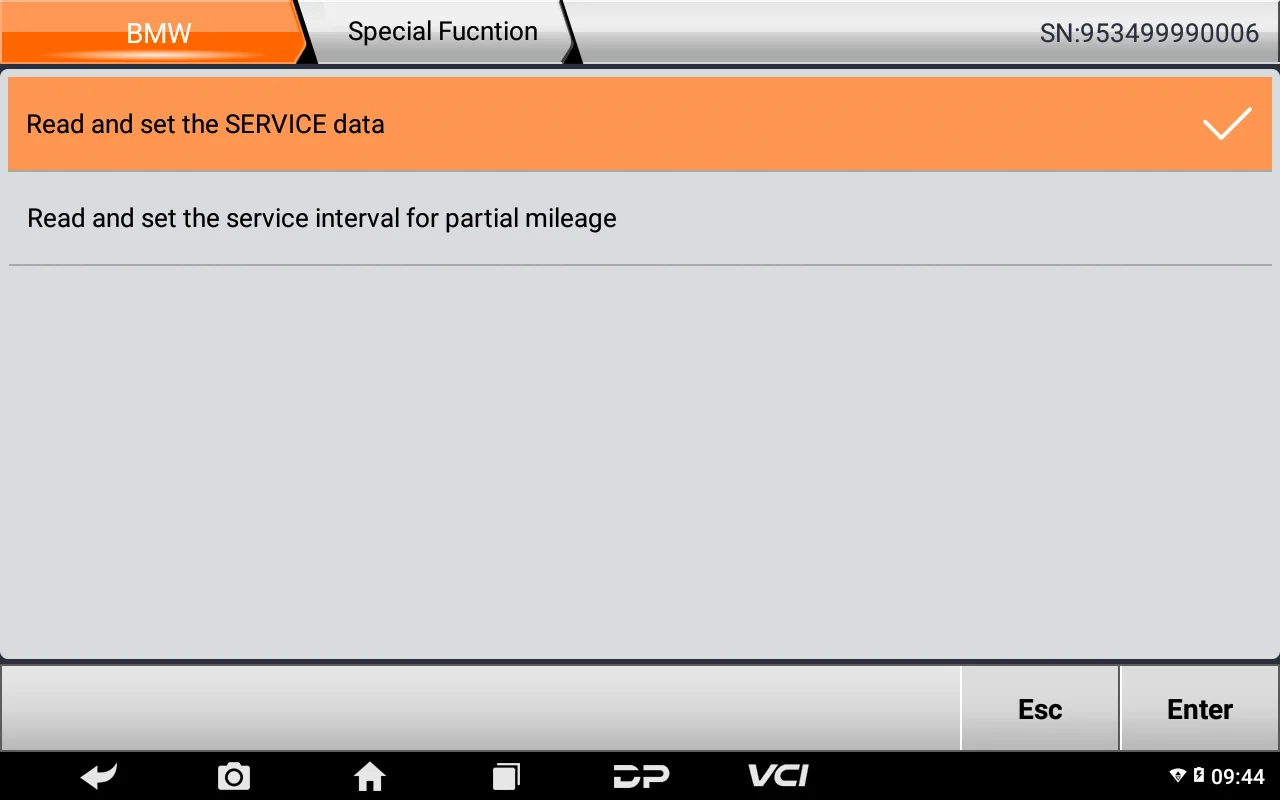

10) Special Function-BMW

11) Special Function-APRILIA

12) Special Function-PIAGGIO

13) Special Function-SYM

14) Special Function-KYMCO

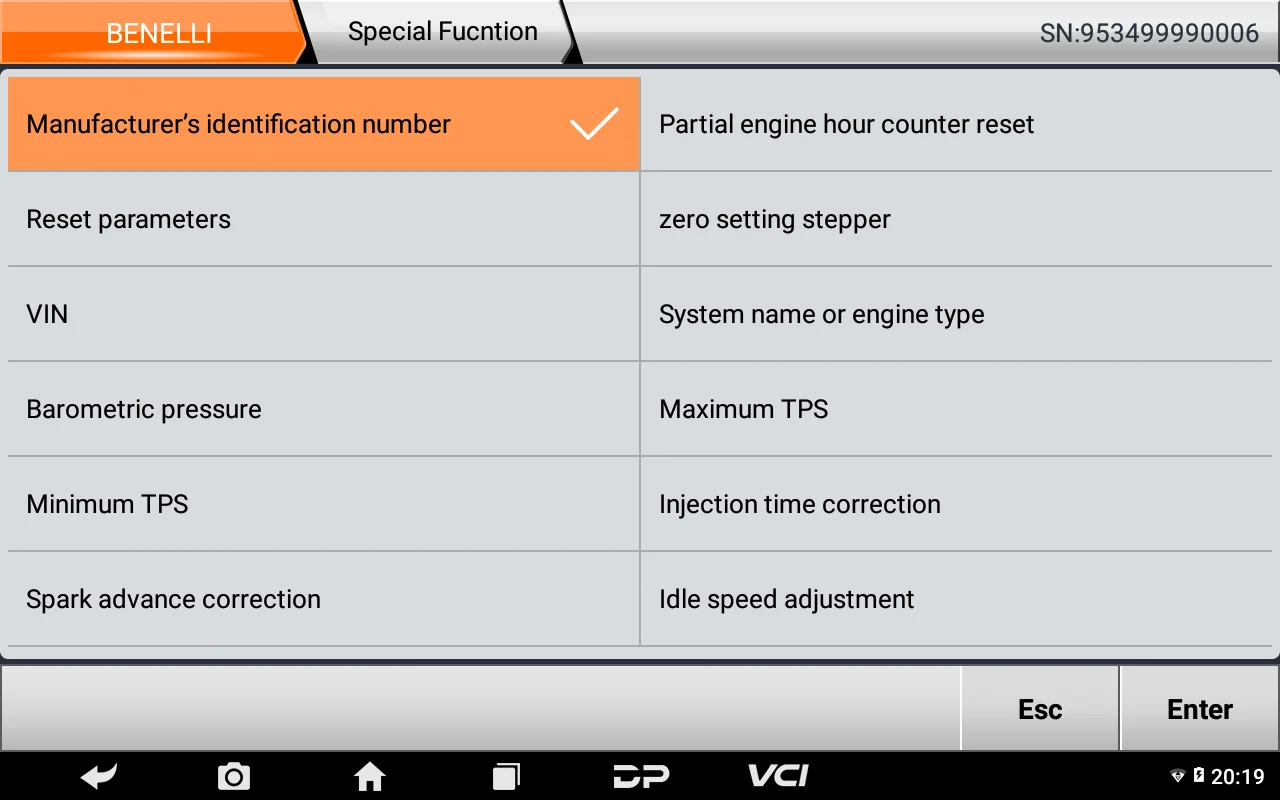

15) Special Function-BENELLI

16) Special Function-VESPA

17) Special Function-SUZUKI

18) Special Function-KAWASAKI

19) Special Function-HONDA

20) Special Function-YAMAHA



OBDSTAR MS70 Accessories:
