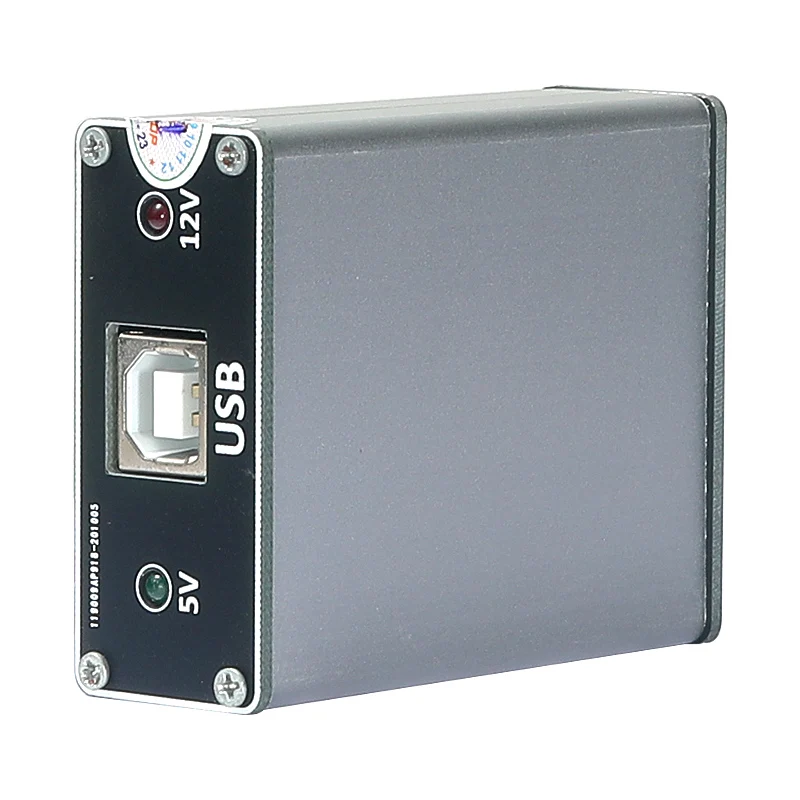

REMAPTOOL PC Version for Motorbike - Remap All ECU Honda Shindengen and Keihin via Kline





  The lastest version  V6.9 on May 18th, 2022 (Diagnostic, Remap All ECM Shindengen & Keihin)



 REMAP & DIAGNOSTICS HONDA VIA KLINE ON LAPTOP

Support: 88 ECU Shindengen and 80 ECU Keihin

Free update:

- Read, Clear DTC, Reset ECM Honda

- View live data

- Pulse measurement - check the operating range of all sensors such as: O2, TP, ECT, IAT, MAP...

- Graphing engine parameters, monitoring max, min values of parameters

- Remap ECM 2022 including: PCX 160 - 2022, AirBlade 2022, LEAD 2022, ADV 2022, VARIO 160 (2022) - K2SA-N02-IN01, AIRBLADE 150 (2022) - K3AA-V01-V11, ADV 160 (2022) - 30400 - K0WL-NB1





1. Remap Keihin ECU

- Support all Honda Keihin

- Flash size: 48 Kb, 56 Kb, 64 KB

- Auto select correct checksum

- Edit bin file with XDF and Tuner ProRT

- Adjust RPM Limiter, AFR Target Maps, Ignition Timing Maps, TPS Fuel Maps, OFF DTC













"SHINDENGEN ECU HONDA" list:

*) YEAR 2021-2022

--------------------------------

1. PCX 160 - 2022 - K1ZG-N21-IN01

2. PCX 160 - 2022 - K1ZG-N31-IN01

3. PCX 160 - 2022 - K1ZF-T01-TH01

4. AIRBLADE 2022 - K2ZA-V01-V11

5. LEAD 2022 - K2TA-V11-V11

6. ADV 150 - 2021 - K0WF-T01-TH01

7. ADV 150 - 2021 - K0WA-N01-IN01

8. ADV 150 - 2021 - K0WG-B01-BR11

9. SH MODE - 2021 - K1NA-V01-V11

10. SH 2020 - 125i ABS - K0RA-V12-V01

11. SH 2020 - 125i CBS - K0RA-V03-V21

12. SH 2020 - 150i ABS - K0SA-V12-V01

13. SH 2020 - 150i CBS - K0SA-V01-V01

14. BEAT NEW 2021 - K1AA-N12-IN02

15. BEAT NEW 2020 - K1AA-N02/N03-IN01

16. BEAT NEW 2020 - K1AA-N13-IN01

17. VISION 2021 - K2CA-V01-V01

18. VISION 2021 - K2CA-V11-V01

19. VISION 2021 - K2CA-V31-V01

--------------------------------

*) YEAR 2016-2020

--------------------------------

20. AIRBLADE 2020 - 150cc - K1F-V01-V01

21. AIRBLADE 2020 - 125cc - K1G-V01-V01

22. AIRBLADE 125 – 2018 - K66A-V01-VN01

23. AIRBLADE 125 – 2018 - K66G-VE1-V01

24. AIRBLADE 125 - 2019 - K66G-VG1-V01 (smartkey)

25. LEAD 125 – 2019 - K12K-V11-V01

26. LEAD 125 – 2019 - K12K-V01-V01 (smartkey)

27. LEAD 125 – 2019 - K12K-V01-V01 (no smartkey)

28. LEAD 125 – 2019 - K12M-V91-V01

29. LEAD 125 – 2019 - K12M-V81-V01

30. LEAD 125 – 2017 - K12H-931-V01

31. SH MODE 125 – 2019 - K29K-961-V01

32. SH MODE 125 – 2019 - K29M-V81-V01

33. SH 125i – 2018 - K77A-V11-V01

34. SH 125i – 2018 - K77A-V01-V11

35. SH 150i – 2018 - K78A-V11-V01

36. SH 150i – 2018 - K78A-V01-V01

37. SH 125i – 2016 - K01J-611-V01

38. SH 150i – 2016 - K02K-701-V01

39. VARIO 125 - 2017 - K59A-A11-IN01

40. VARIO 150 – 2019 - K59F-A01-IN01

41. VARIO 150 – 2019 - K59J-A71-IN01

42. VARIO 150 – 2019 - K59K-T11-TH01

43. VARIO 125 - 2019 - K60A-N11-IN01

44. VARIO 150 – 2018 - K60A-B01-IN01

45. VARIO 150 – 2018 - K60F-T01-TH01

46. VARIO 125 - 2019 - K60K-B21-IN01

47. VARIO 150 – 2018 - K60K-B31-IN01

48. VARIO 150 – 2018 - K60R-B61-IN01

49. VARIO 150 – 2020 - K60R-B71-IN01

50. VARIO 150 - 2017 - K59-M01

51. VARIO 110 - K46-N31-IN01

52. VARIO 110 - K46-N21-IN01

53. VARIO 110 - K46-NA1-IN01

54. CLICK 125 – LED - K60S-T71-TH01

55. CLICK 125 – 2018 - K59R-C01

56. BEAT STREET - K81A-N02-IN01

57. BEAT STREET - K81A-N12-IN01

58. BEAT STREET - K81H-N52-IN01

59. BEAT STREET - K81H-N62-IN01

60. BEAT 110 - K25G-611-IN01

61. BEAT 110 - K61-N01-IN01

62. Genio 110 - K0J-N01-IN01

63. Genio 110 - K0J-N11-IN01

64. PCX 150 - K96A-V01-V01

65. PCX 150 - K97A-V01-V01

66. PCX 150 - K97A-V01-V11

67. PCX 150 - K96A-T01-TU01

68. PCX 150 - THAI - K97F-T01-TH01

69. PCX 150 - THAI - K97A-U01-TH01

70. PCX 125 - K35A-V01-V01

71. PCX 125 – KOREA - K35K-K21-K01

72. PCX 125 – THAI - K36S-T31-TH01

73. PCX 150 - 2019 - K97G-N31-IN01

74. PCX 150 - 2019 - K97G-N01-IN01

75. PCX 150 - 2017 - K36J-N11-IN01

76. PCX 150 - 2019 - K97A-U01-TH01

77. PCX 125 THAI - 2017 - K35A-T01-ED01

78. PCX 150 THAI - 2015 - K50A-T02-TH01

79. VISION 110 – 2019 - K44P-V91-V01

80. VISION 110 – 2019 - K44P-V81-V01

81. VISION 110 – 2017 - K44F-V01-V01

--------------------------------

*) YEAR 2013-2015

--------------------------------

82. AIRBLADE 125 2013-2015 - K27G-V51-V01

83. AIRBLADE 125 2013-2015 - K27A-V01-V01

84. LEAD 125 2013-2015 - K12A-903-V01

85. SH MODE_2013-15 - K29-903-V01

*) NEW

86. VARIO 160 (2022) - K2SA-N02-IN01

87. AIRBLADE 150 (2022) - K3AA-V01-V11

88. ADV 160 (2022) - 30400 - K0WL-NB1

3. Diagnostic function

a) Read, Clear DTC, Reset ECM





b) View Engine Data





c) Display Sensor Signal Graph









The manifold absolute pressure sensor





Fuel stream percent and Oxygen sensor signal





Oxygen sensor voltage
