2024 Lonsdor KH100+ Full Featured Key Remote Programmer with Toyota AKL Online Calculation 1 Year Activation

Lonsdor KH100+ Full Featured Key Remote Programmer with Toyota AKL Online Calculation 1 Year Activation

Highlights:
1.Cost-effective Toyota Programming Package
2.Support Min.90% Toyota/Lexus up to 2022 smart key programming.
3.Exclusive support for 8A(H chip) generation
4.Need use FT02-PH0440B (Toyota Key) / FT08-PH0440B(Lexus Key) to collect data and generate with KH100+ directly.

Notice:
1.Toyota AKL license will not be activated before shipping,so please send us serial number after get package.
2.KH100+ can't support 2023 Toyota cars with key type"BABA",only support 8A keys.

Lonsdor KH100+ Functions:

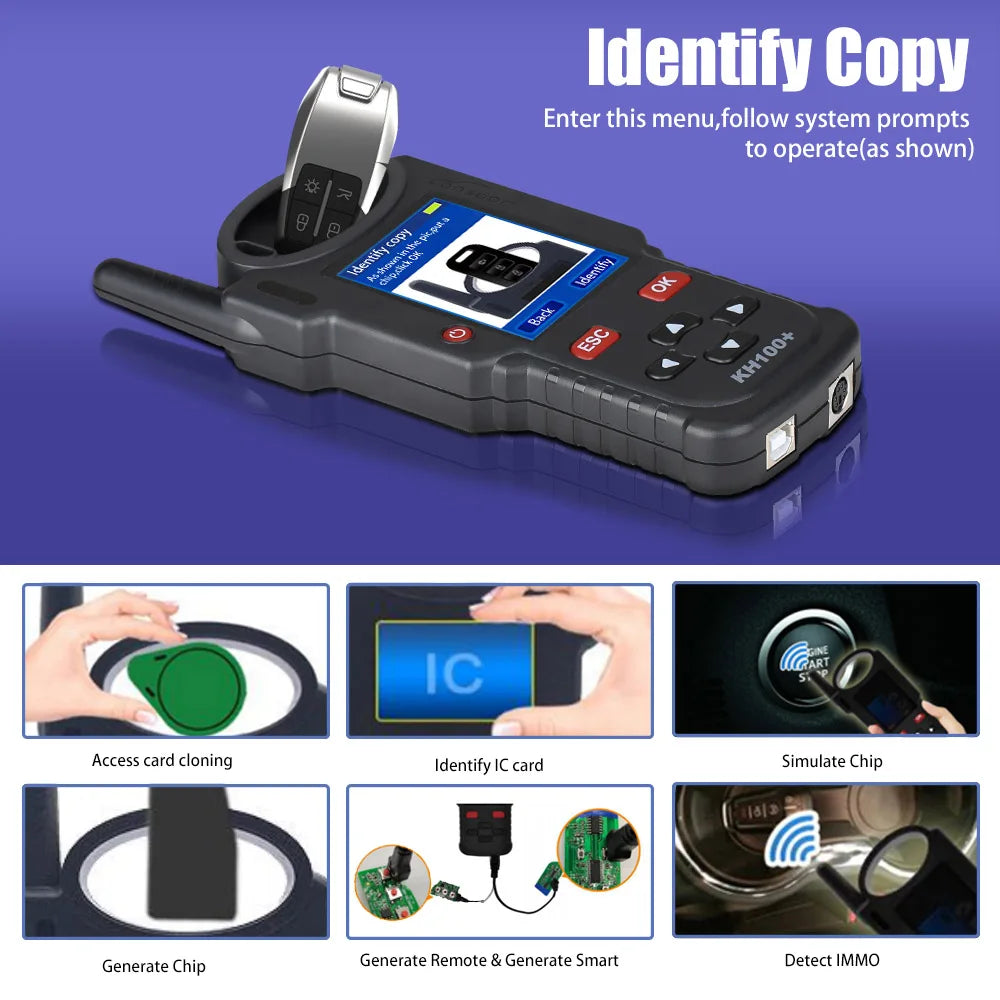

Identify Copy
Enter this menu, follow system prompts to operate (as shown).

Toyota/Lexu car key programming after open Toyota AKL Authoration
The chips types can be copied by Lonsdor KH100 remote maker incl.
11 /12 /13 /33 /42 /46 /48 /4C /60 /61 /62 /63 /64 /65 /66 /67 /68 /69 /6A /6B /70E /71 /72G /8A(Toyota H)
Note 1:
11/12/13: Can be copied to T5/original JMD red super chip/ original JMD king chip
33: Can be copied to T5/ blank 7935
42: Can be copied to blank 7935
46: Can be copied to LKP46/ CN3/ original JMD red super chip/ original JMD king chip
48: Can be copied to Deputy factory 48
4C/60/61/62/63/64/65/66/67/68/69/6A/6B/70E/71/72G: Can be copied to LKP4D/ JMD Red Super Chip(S-JMD) for Handy Baby/original JMD king chip for handy baby
8A (Toyota H) chip: Can be copied to TS21
Note 2:
Copy function is encrypted by the chip itself, some original car keys only support reading or editing, not copy.
If the original car key does not support copies, the copy button will not appear in the details page.
Lonsdor KH100+ Functions:

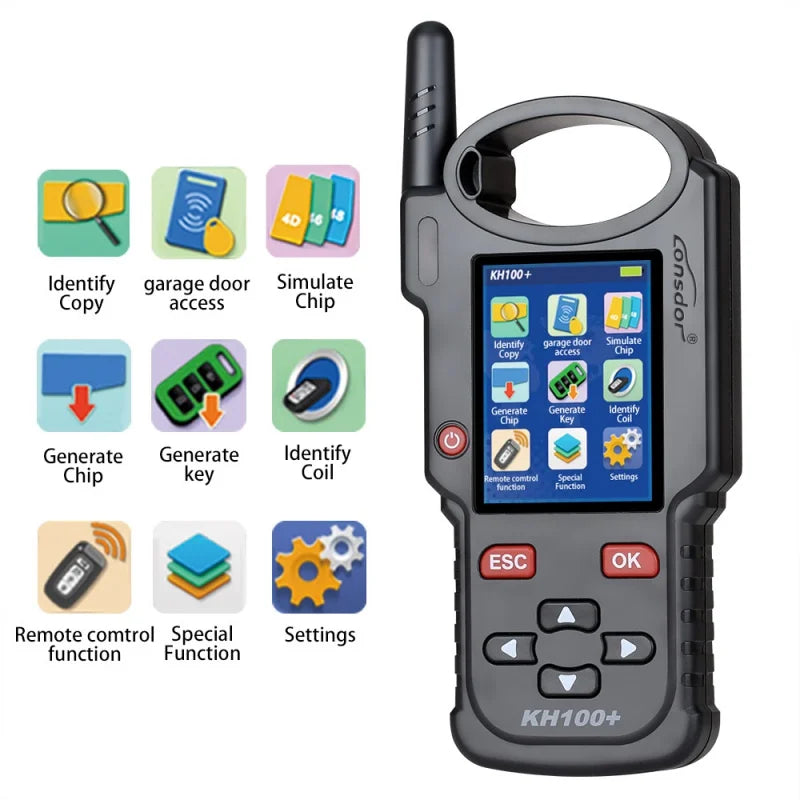

When complete the registration activation, it enters below menu interface:


Identify Copy
Enter this menu, follow system prompts to operate (as shown).

Access card cloning
Enter this menu, you can identify and copy IC card, and generate garage key as well. Follow the prompts to operate(as shown below).

Simulate Chip
Put KH100+'s antenna at the ignition switch(as shown), choose the corresponding chip type to simulate.
This device supports below chip types: ①4D ②46 ③48 ④47


Generate Chip
Put below types of chip into the induction slot(as shown), choose the corresponding chip to operate according to the prompts.
This device supports below chip types: ①4D ②46 ③48 ④T5 ⑤7935 ⑥8A ⑦4C ⑧Chip conversion

Note: some chip data will be covered and locked.

Generate Remote
Enter [Generate key]->[Generate remote], choose the corresponding vehicle type to generate remote control(as shown) according to different regions.

Generate Smart key(card):
Enter [Generate key]->[Generate smart key] menu, choose the corresponding vehicle type to generate smart key/card(as shown) according to different regions.

Identify Coil:
①Search smart induction area Connect remote key with remote connector, Put KH100+'s antenna close to the pre-determined position. If inductive signal is identified, the device will continuously make sounds, please check if the position is right(as shown below).
②Detect IMMO Connect remote key with remote connector, Put KH100+'s antenna close to key identification coil, and use key to turn ignition ON. When KH100+ buzzer beeps, it means signal is detected.

Remote Frequency
Enter this menu, put remote control at the device’s induction area to detect remote frequency.

Special function:
Include: detect infrared signal, unlock Toyota smart key, FT Toyota smart key, Charge key, More functions, to be continued...
①Detect infrared signal
Put remote control at the infrared signal detection area, press the remote's button once. When the light on KH100+'s screen is on, it indicates there is infrared signal, otherwise there is no signal(see below pic).

②FT smart key
For Toyota or Lexus smart keys from Lonsdor, you can perform the following functional operations: read version info, modify key value, unlock and upgrade program and etc. Put in the smart key, click [select] to operate.

③Unlock Toyota smart key/detect Toyota key status
   Put in the smart key, click OK to operate.

④Charge key
   For a chargeable key with battery, you can perform this function. Put in the key, click [OK] to operate.


How to register Lonsdor KH100:

Note:  After booting the device, please connect  to WIFI  and enter the following process.

For New user:
1) For the first use, please prepare a common call phone or email to help complete activation process, click OK to start.
2)  Boot the device and enter registration activation process.
3)  Input user name, password. Confirm password, cellphone number or email to obtain verification code. Then input the code to submit registration.
4)  Account registered successfully, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

For Registered user(who has registered Lonsdor products before)
1) For the first use, please prepare a registered call phone or email to help complete activation process, click OK to start.
2)  Boot the device and enter registration activation process.
3)  Input your registered mobile number or email, password to obtain verification code. Then input the code to submit login.
4) Account login succeeded, it will take 5 seconds to bind the device.
5) Successful registration, enter the system.

In addition, users who have already registered Lonsdor's product can directly choose [registered user] to activate account.

How to update Lonsdor HK100:

Enter settings menu
Connect the device to network
Then choose [check for updates]
One-click for online update!

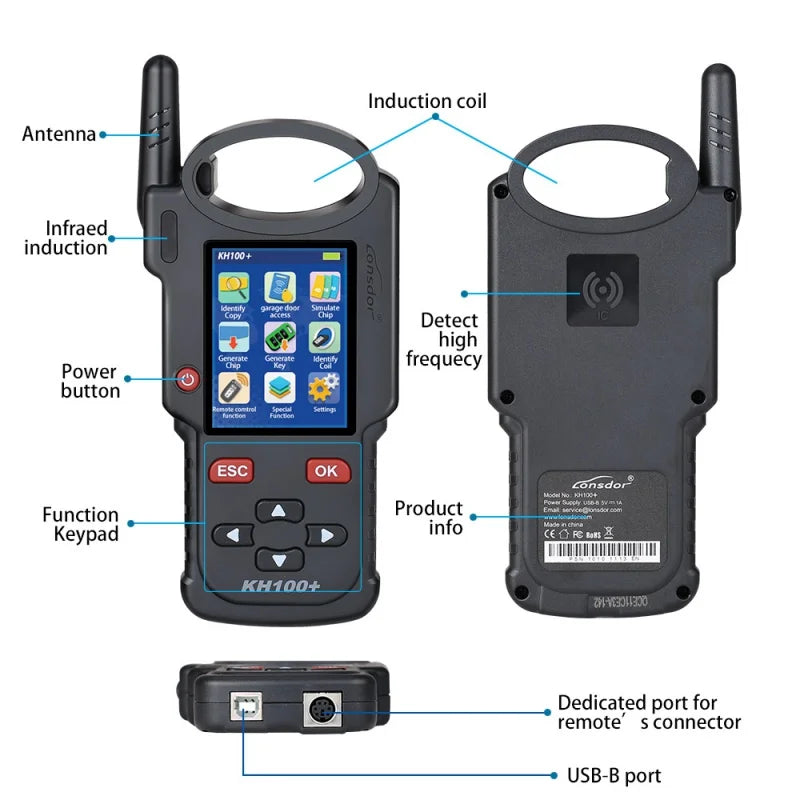

Lonsdor KH100+ Device components:
