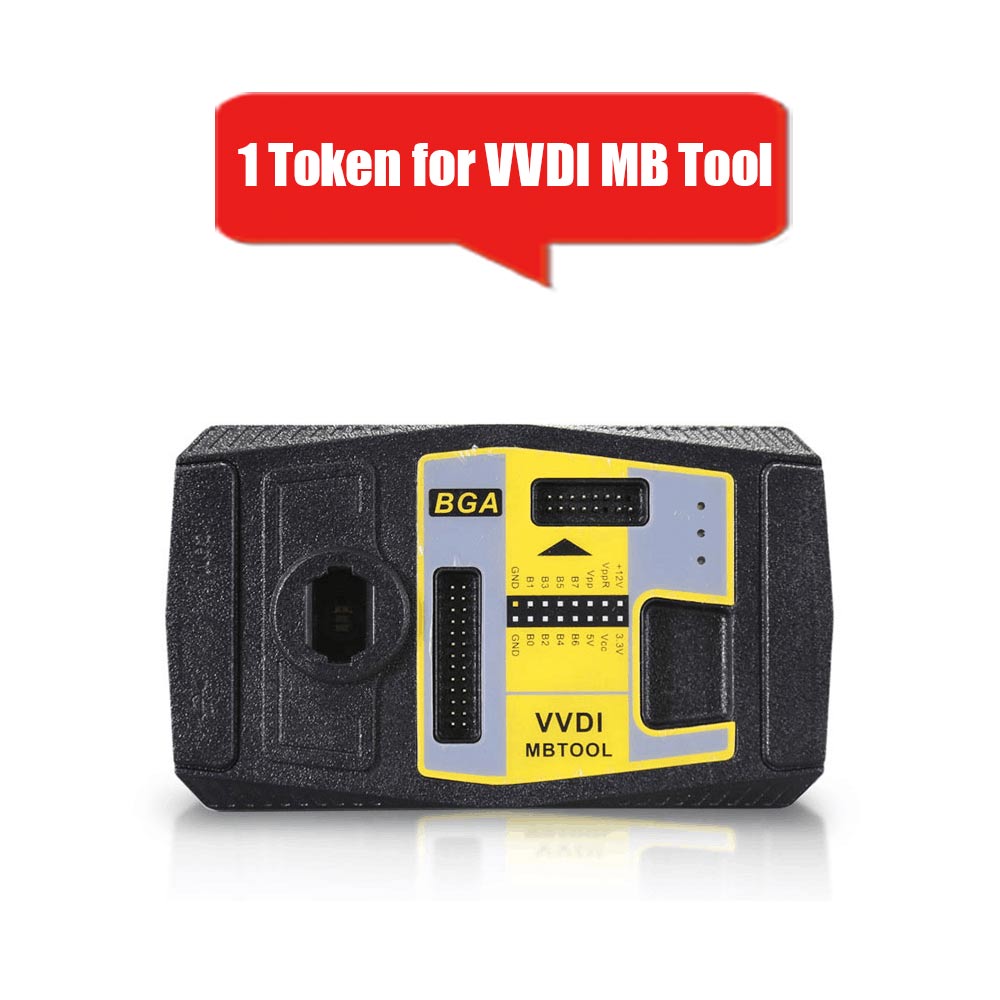

1 Token for VVDI MB BGA TOOL BENZ Password Calculation

When you use VVDI MB TOOL to calculate password for Mercedes, you will need tokens. For customer with Condor machine, factory provide one free token everyday. While for customer don't have Condor will need to pay for the token service. You can buy this token and add to your VVDI MB Tool, so you can calculate the password at any time.
1 Token for VVDI MB BGA TOOL BENZ Password Calculation

1. Overview

Password calculation can get key password through EIS and working key (online)

CAN protocol EIS all support password calculation

Support BGA keys and other NEC keys

Support calculate password for NEC v51, v57 keys. No soldering, safe method.

Data acquisition time depends on the key version. It needs about 3.5 - 13 minutes

BGA version need about 5 minutes, some versions only need 3.5 minutes

Calculate time in server: 30 seconds – 1 minute

2.Support Type

W164

W164 2009-

W166, 197, 212, 218, 246

W169, 209, 211

W172, 204, 207

W216

W221

W639 2009-

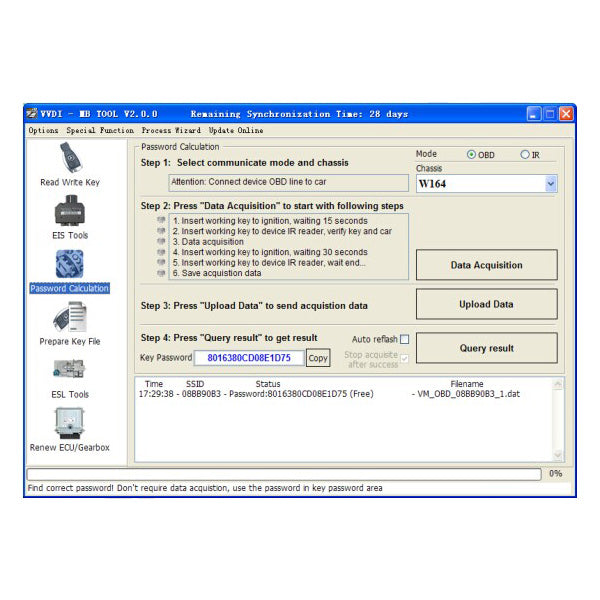

3. Functions

Mode: OBD and IR adaptor, mode use for communicate with EIS

Chassis: Select chassis number, you can detect it with auto detect in EIS Tools

Data Acquisition:

Press“Data Acquisition”, It Will Continue with Following Steps Automatically

1) Insert working key to ignition, waiting 15 seconds

2) Insert working key to device IR reader, verify key and car

3) Data acquisition

4) Insert working key to ignition, waiting 30 seconds

5) Insert working key to device IR reader, wait end...

6) Save acquisition data

Upload Data: Upload saved acquisition data to server for calculate password.

Attention:Once success calculate password for one SSID, the server will not accept calculate the acquisition data with same SSID in 2 hours. After 2 hours, acquisition data with same SSID upload to server will start with a new task

Query Result: Query server calculation result. The password will fill in key password area automatically after success calculation. Use “Copy” copy password to clipboard

Auto Reflash: Program will auto re-flash server result until there’s no task for this device.You can start data acquisition once more while auto reflash starting

Stop acquisite after success: If you are run data acquisition while auto reflash running,program will stop the acquisition progress when find correct password

4. About Query Result Status

Query result support query calculation result in 24 hours, others don't support Query result will display Time, SSID, Status, Filename (name when upload to server)

Status Has the Following Types:

1) Queuing: number x, require about y minutes, means your task need y minutes

2) Processing: requires 1 minutes, means your task need 1 minute to finish

3) Password: xxxxxxxxxxxxxxxx (Free), means success find password, “Free” show this task is calculated for free or this task already success calculated before

4) Discard: Once you success calculate the password, in 2 hours, the upload acquisition data with same SSID will discard

5) Already upload: means the server already have this file in queuing

6) Pay for password calculation before upload: means your device doesn’t have authorize for calculation. Contact your dealer and pay for password calculation

7) Failed: means this task failed to get password, you can run data acquisition again.Failed task is always free
