Mastering the Art of Engine Timing: A Comprehensive Guide to Using the DA-3100D Timing Light

Mastering the Art of Engine Timing: A Comprehensive Guide to Using the DA-3100D Timing Light

Introduction

In the realm of automotive maintenance, precision and accuracy are paramount. The DA-3100D Timing Light stands as a powerful tool for achieving optimal engine performance through precise timing adjustments. In this guide, we will delve into the essential steps of using the DA-3100D Timing Light to ensure your engine runs smoothly and efficiently.

Step 1: Gather Your Tools

Before you begin, ensure you have all the necessary tools at hand:

• DA-3100D Timing Light
• Safety goggles
• Protective gloves
• Owner's manual for your vehicle

Step 2: Safety First

Always prioritize safety. Put on your safety goggles and protective gloves to shield yourself from any potential hazards while working with the engine.

Step 3: Prepare Your Vehicle

Park your vehicle on a level surface and engage the parking brake. Turn off the engine and allow it to cool down before proceeding.

Step 4: Locate the Timing Marks

Open the hood of your vehicle and locate the timing marks on the crankshaft pulley or harmonic balancer. Refer to your owner's manual for specific guidance on the location of these marks.

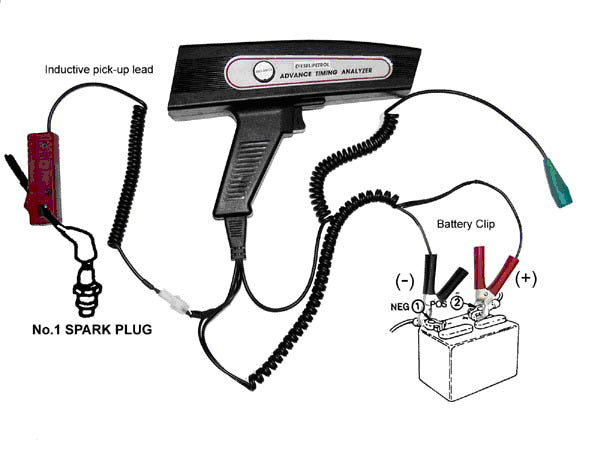

Step 5: Connect the Timing Light

1. Identify the spark plug wire for cylinder number one. This is typically the wire closest to the front of the engine.
2. Attach the inductive pickup of the timing light to the spark plug wire by clamping it securely.

Step 6: Power Up the Timing Light

Most DA-3100D Timing Lights require batteries or an external power source. Follow the manufacturer's instructions to power up the timing light.

Step 7: Start the Engine

Crank the engine and let it idle. The timing light will begin to flash, illuminating the timing marks on the harmonic balancer as the engine runs.

Step 8: Adjusting the Timing

1. Observe the timing marks as they are illuminated by the timing light. One mark indicates the initial timing, while another indicates the total timing. Refer to your vehicle's specifications to determine the correct timing degrees.
2. If adjustments are necessary, loosen the distributor bolt slightly.
3. Gently rotate the distributor to advance or retard the timing according to the required specifications.
4. Tighten the distributor bolt once the desired timing is achieved.

Step 9: Recheck and Finalize

After adjusting the timing, recheck the timing marks using the timing light to ensure accuracy. Make any additional adjustments if necessary.

Step 10: Turn Off the Engine and Clean Up

Once you are satisfied with the timing adjustments, turn off the engine and disconnect the timing light. Close the hood of your vehicle.

Conclusion

Mastering the usage of the DA-3100D Timing Light is a skill that can greatly contribute to the optimal performance of your vehicle's engine. By following these steps meticulously, you can confidently adjust the engine timing, promoting fuel efficiency and engine longevity. Always refer to your vehicle's manual for specific instructions and recommended timing specifications. Remember, precision in timing leads to a smoother, more efficient ride.
